This is the upgrade to the Ionboard S22. The IonGrid S22 has the 'Halo' design and a controller on the front.

The Lumimuse IonGrid S22 LED Grow Light offers precise 0-100% dimming control with a convenient knob that adjusts light intensity in 20% increments, providing growers with a user-friendly way to optimize light levels for their plants.

The driver also contains a port that enables daisy chaining and can connect with our smart controllers to access grow cycles, scheduling, app control, and more. Join our ecosystem of controllers and grow equipment including fans and lights, all working together to achieve the optimal environment.

Specs

• Light Dimensions: 33 x 33 x 1.1cm
• Coverage: 2 x 2ft  / 60cm x 60cm
• Watts: 130w
• PPFD / Efficiency:  1253 PPFD / 2.7 µmol/j
• Diodes / Chip Count: Samsung LM301B / 280
• Spectrum: 660nm, 730nm, 3000K, 5000K

Features

• Same as the T22 IonGRID but with a more basic onboard controller...however, if you're hooking this up to controller 69, the onboard controller on the LED is made redundant. In short, a better combo is this IonGrid S22 with UIS Controller 69. Conversely, there's no point paying extra for a Tseries AC Infinity LED if you plan on getting a 69 controller. Again, the 69 controller renders any onboard LED controller redundant.

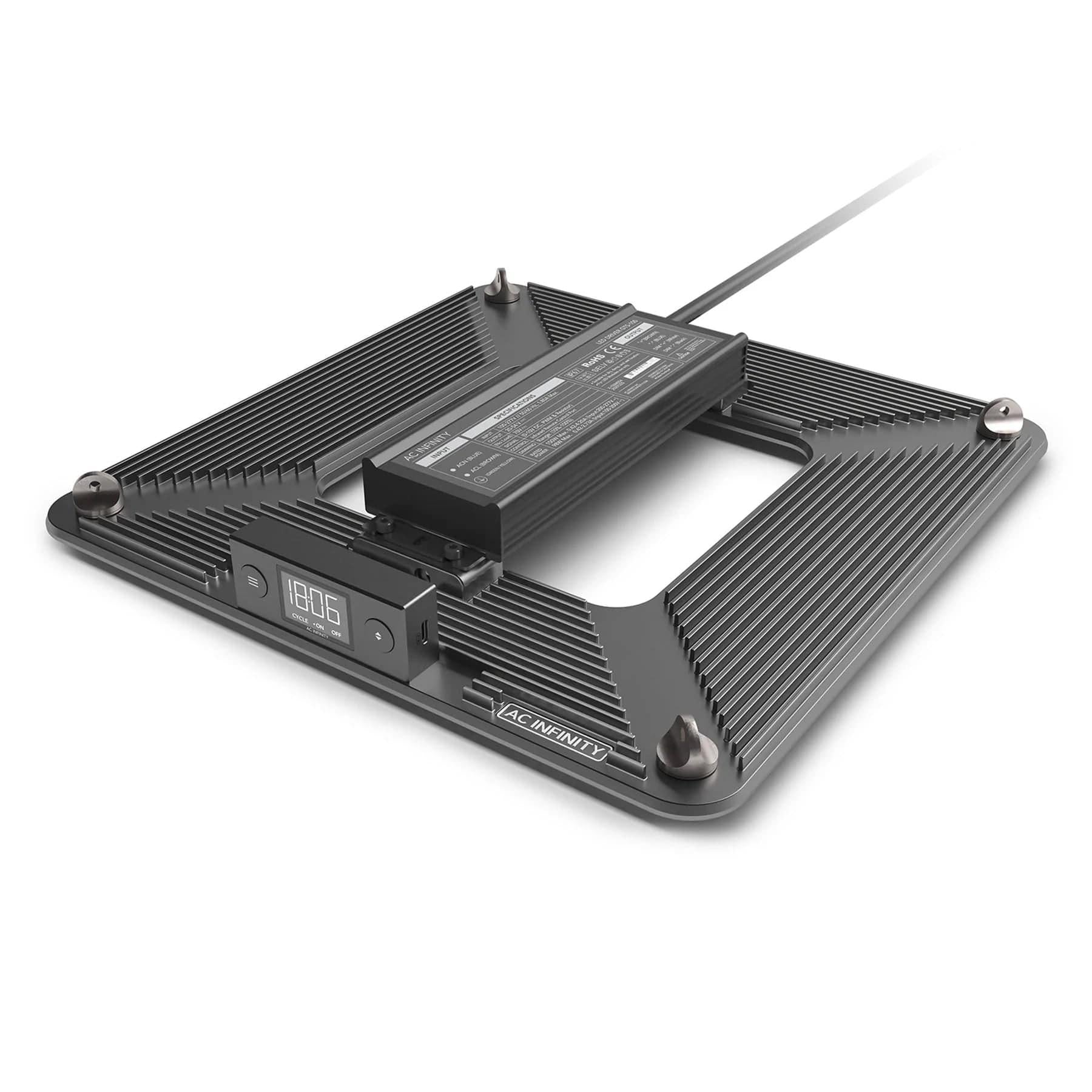

• Innovative halo design produces uniform coverage and deeper light penetration to maximize plant yields.
• Specially formulated with full-spectrum Samsung LM301H white, red, and IR LEDs optimized for all grow stages.
• Linear bar light design adapted into four-sided halo form factor to achieve commercial lighting output.
  Digital controller with daisy-chaining ports featuring PWM dimming, timers, cycles, and backup memory.
• Air-suspended driver over aluminium heatsink passively cools LEDs to last longer and boost PAR output.

An indoor LED grow lamp with an innovative halo design crafted to maximize plant yields by providing uniform coverage and deeper light penetration. This LED grow system uses the latest Samsung LM301H diodes to efficiently produce full-spectrum lighting fit for use during the germination, vegetative, and flowering stages.

Each unit is plug-and-play, and includes a set of rope hanging hardware to be ready for use out of the box.

This product is a part of the UIS platform of grow devices and smart controllers, designed to integrate with each other to achieve your ideal environment.

The Onboard Controller

Each system includes a programmable controller that is capable of efficient 0-100% PWM dimming. Set timers and consistent light cycles up to 24 hours for both on and off. Features baseline brightness levels and backup memory in case of a temporary power loss.

Controllers can be detached to be mounted remotely and are built with extension ports to provide programming to additional LED grow lights.
