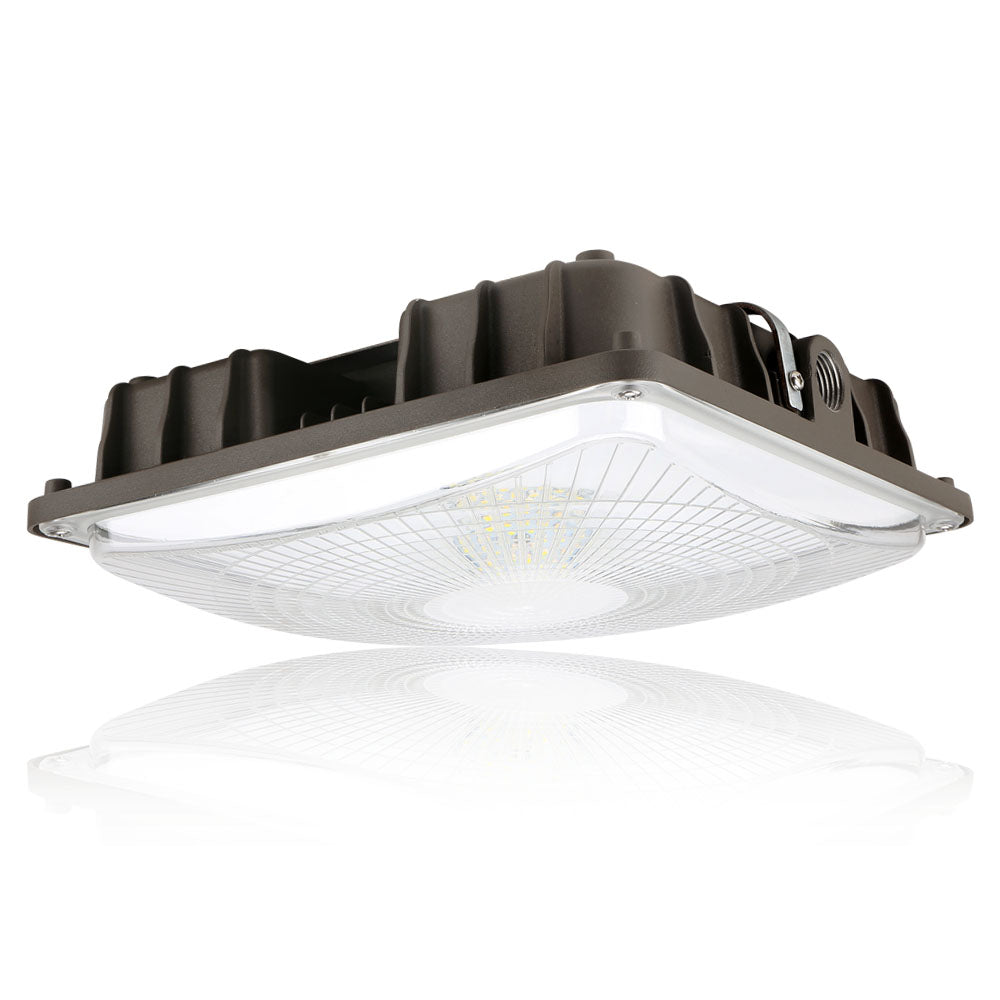

LED canopy lights in the CP05 60 W, 4000 K range offer the listed control configurations. The specifications below apply only to the named luminaire or option and exclude unconfirmed accessory performance and pack totals.
| Catalogue option | Product code | Documented luminaire specifications |
|---|---|---|
| Without Emergency Battery / Without Motion Sensor | RDCP02050604KDNSMLCD | Rated power: 60 W; Input supply: 120–277 V AC; Colour temperature: 4000 K; IP rating: IP65; Dimming interface: 1–10 V dimming; Body dimensions: Length 24.18 cm × width 24.18 cm × body height 8.1 cm |
| Without Emergency Battery / With On/off Motion Sensor ( Field Install ) | RDCP02050604KDMSMLCD | Rated power: 60 W; Input supply: 120–277 V AC; Colour temperature: 4000 K; IP rating: IP65; Dimming interface: 1–10 V dimming; Body dimensions: Length 24.18 cm × width 24.18 cm × body height 8.1 cm |
| With Emergency Battery ( Field Install ) / Without Motion Sensor | RDCP02050604KDNSMLCD-EB | Rated power: 60 W; Input supply: 120–277 V AC; Colour temperature: 4000 K; IP rating: IP65; Dimming interface: 1–10 V dimming; Body dimensions: Length 24.18 cm × width 24.18 cm × body height 8.1 cm |
| With Emergency Battery ( Field Install ) / With On/off Motion Sensor ( Field Install ) | RDCP02050604KDMSMLCD-EB | Rated power: 60 W; Input supply: 120–277 V AC; Colour temperature: 4000 K; IP rating: IP65; Dimming interface: 1–10 V dimming; Body dimensions: Length 24.18 cm × width 24.18 cm × body height 8.1 cm |
Specifications refer to one documented luminaire core in normal mains operation. They do not establish accessory ratings, assembled-bundle output, pack-total power or UK conformity.
Confirm the exact delivered contents, mounting hardware, instructions and any selected control or battery accessories before ordering.
Use the row for your selected product code. A value documented for one option must not be assumed for an unconfirmed sensor, photocell, emergency or shield assembly.
Choose the sensor/photocell and emergency configuration you need, then confirm the exact supplied modules. Normal mains wattage is not emergency output, and battery runtime remains unconfirmed.
Exact supplied-unit 50 Hz suitability, UK conformity and installation requirements remain unconfirmed. Ask a qualified electrician to check the chosen model and supplied wiring before ordering.
Direct replacement compatibility is not confirmed. Compare the mounting arrangement, electrical supply, site requirements and light distribution before selecting a fitting.
Confirm the supplied model and revision, isolate the supply before installation and follow the applicable fitting instructions. A published voltage range or North American certification claim is not UK approval.
Other listings to browse: CP05 RDCP02050275KDNSMLCD. These links are browsing suggestions and do not imply compatibility or substitution.
Delivery
Tracked delivery in 3–7 working days. Delivery costs are shown at checkout before you pay, and you will receive tracking details as soon as your order ships.
Returns
Changed your mind? You can return items within 14 days of delivery. If anything arrives damaged or faulty, email ukcustomerservice@lumimuse.com with a photo and we will arrange a replacement or refund.
Specifications apply to the selected option and the components listed below.
Without Emergency Battery / Without Motion Sensor · SKU: RDCP02050604KDNSMLCD
| Control protocols | 1-10 V dimming |
|---|---|
| Input voltage (V) | 120.0–277.0 |
| Supply type | AC |
| Rated power (W) | 60.0 |
| Colour temperature (K) | 4000 |
| Length (mm) | 241.8 |
| Width (mm) | 241.8 |
| Height (mm) | 81.0 |
| IP rating | IP65 |
60 W CP05 luminaire body at fixed 4000 K, shared by the four exact listed configurations. Dimensions exclude sensor and emergency attachments. Dimming is a luminaire function; the optional sensor is described as on/off. Emergency output, runtime and accessory dimensions are not specified by these body ratings.
Without Emergency Battery / With On/off Motion Sensor +$33 ( Field Install ) · SKU: RDCP02050604KDMSMLCD
| Control protocols | 1-10 V dimming |
|---|---|
| Input voltage (V) | 120.0–277.0 |
| Supply type | AC |
| Rated power (W) | 60.0 |
| Colour temperature (K) | 4000 |
| Length (mm) | 241.8 |
| Width (mm) | 241.8 |
| Height (mm) | 81.0 |
| IP rating | IP65 |
60 W CP05 luminaire body at fixed 4000 K, shared by the four exact listed configurations. Dimensions exclude sensor and emergency attachments. Dimming is a luminaire function; the optional sensor is described as on/off. Emergency output, runtime and accessory dimensions are not specified by these body ratings.
With Emergency Battery +$95 ( Field Install ) / Without Motion Sensor · SKU: RDCP02050604KDNSMLCD-EB
| Control protocols | 1-10 V dimming |
|---|---|
| Input voltage (V) | 120.0–277.0 |
| Supply type | AC |
| Rated power (W) | 60.0 |
| Colour temperature (K) | 4000 |
| Length (mm) | 241.8 |
| Width (mm) | 241.8 |
| Height (mm) | 81.0 |
| IP rating | IP65 |
60 W CP05 luminaire body at fixed 4000 K, shared by the four exact listed configurations. Dimensions exclude sensor and emergency attachments. Dimming is a luminaire function; the optional sensor is described as on/off. Emergency output, runtime and accessory dimensions are not specified by these body ratings.
With Emergency Battery +$95 ( Field Install ) / With On/off Motion Sensor +$33 ( Field Install ) · SKU: RDCP02050604KDMSMLCD-EB
| Control protocols | 1-10 V dimming |
|---|---|
| Input voltage (V) | 120.0–277.0 |
| Supply type | AC |
| Rated power (W) | 60.0 |
| Colour temperature (K) | 4000 |
| Length (mm) | 241.8 |
| Width (mm) | 241.8 |
| Height (mm) | 81.0 |
| IP rating | IP65 |
60 W CP05 luminaire body at fixed 4000 K, shared by the four exact listed configurations. Dimensions exclude sensor and emergency attachments. Dimming is a luminaire function; the optional sensor is described as on/off. Emergency output, runtime and accessory dimensions are not specified by these body ratings.
Specifications for this option are unavailable. Please confirm the required details before ordering.
