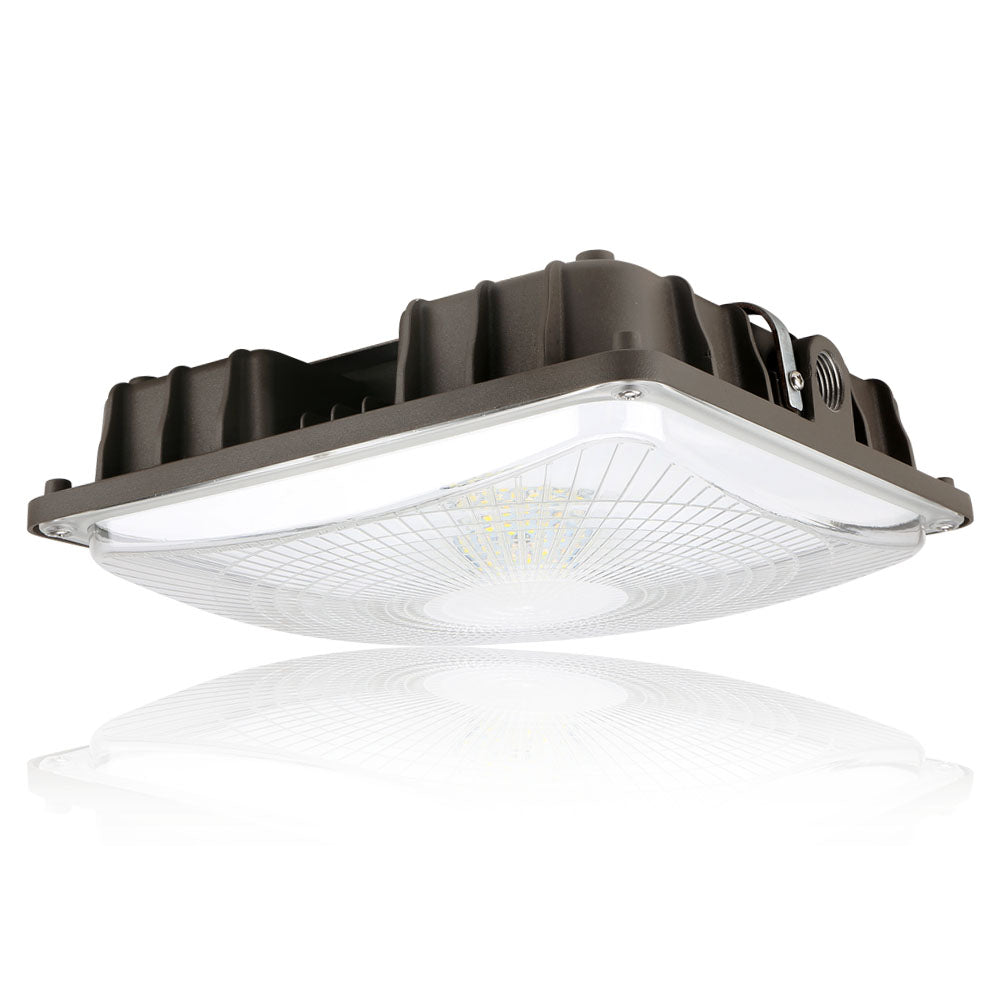

These LED canopy lights document the CP05 base with 60 W per luminaire, fixed 5000 K light and 120–277 V AC input. Consider this fitting for a planned covered entrance, walkway or garage, then confirm the exact supplied electrical label and installation requirements.
Only the named normal-lighting luminaire body is described. Optional sensor, emergency and mounting attachments require their own evidence.
| Shop option reference | RDCP02050605KDNSMLCD — Without Emergency Battery / Without Motion Sensor |
|---|---|
| Scope | 60 W CP05 luminaire body at fixed 5000 K, shared by the four exact listed configurations. Dimensions exclude sensor and emergency attachments. Dimming is a luminaire function; the optional sensor is described as on/off. Emergency output, runtime and accessory dimensions are not specified by these body ratings. |
| Documented base model | RDCP02050605KDNSMLCD |
| Base input minimum (V) | 120 V |
| Base input maximum (V) | 277 V |
| Supply type | AC |
| Per-luminaire normal-lighting power (W) | 60 W |
| Fixed base colour temperature (K) | 5000 K |
| Base enclosure IP rating | IP65 |
| Base dimming interface | 1-10 V dimming |
| Base body length (cm) | 24.18 cm |
| Base body width (cm) | 24.18 cm |
| Base body depth (cm) | 8.1 cm |
| Base dimming capability | 1–10 V dimmable |
| Shop option reference | RDCP02050605KDMSMLCD — Without Emergency Battery / With On/off Motion Sensor ( Field Install ) |
| Scope | 60 W CP05 luminaire body at fixed 5000 K, shared by the four exact listed configurations. Dimensions exclude sensor and emergency attachments. Dimming is a luminaire function; the optional sensor is described as on/off. Emergency output, runtime and accessory dimensions are not specified by these body ratings. |
| Documented base model | RDCP02050605KDNSMLCD |
| Base input minimum (V) | 120 V |
| Base input maximum (V) | 277 V |
| Supply type | AC |
| Per-luminaire normal-lighting power (W) | 60 W |
| Fixed base colour temperature (K) | 5000 K |
| Base enclosure IP rating | IP65 |
| Base dimming interface | 1-10 V dimming |
| Base body length (cm) | 24.18 cm |
| Base body width (cm) | 24.18 cm |
| Base body depth (cm) | 8.1 cm |
| Base dimming capability | 1–10 V dimmable |
| Shop option reference | RDCP02050605KDNSMLCD-EB — With Emergency Battery ( Field Install ) / Without Motion Sensor |
| Scope | 60 W CP05 luminaire body at fixed 5000 K, shared by the four exact listed configurations. Dimensions exclude sensor and emergency attachments. Dimming is a luminaire function; the optional sensor is described as on/off. Emergency output, runtime and accessory dimensions are not specified by these body ratings. |
| Documented base model | RDCP02050605KDNSMLCD |
| Base input minimum (V) | 120 V |
| Base input maximum (V) | 277 V |
| Supply type | AC |
| Per-luminaire normal-lighting power (W) | 60 W |
| Fixed base colour temperature (K) | 5000 K |
| Base enclosure IP rating | IP65 |
| Base dimming interface | 1-10 V dimming |
| Base body length (cm) | 24.18 cm |
| Base body width (cm) | 24.18 cm |
| Base body depth (cm) | 8.1 cm |
| Base dimming capability | 1–10 V dimmable |
| Shop option reference | RDCP02050605KDMSMLCD-EB — With Emergency Battery ( Field Install ) / With On/off Motion Sensor ( Field Install ) |
| Scope | 60 W CP05 luminaire body at fixed 5000 K, shared by the four exact listed configurations. Dimensions exclude sensor and emergency attachments. Dimming is a luminaire function; the optional sensor is described as on/off. Emergency output, runtime and accessory dimensions are not specified by these body ratings. |
| Documented base model | RDCP02050605KDNSMLCD |
| Base input minimum (V) | 120 V |
| Base input maximum (V) | 277 V |
| Supply type | AC |
| Per-luminaire normal-lighting power (W) | 60 W |
| Fixed base colour temperature (K) | 5000 K |
| Base enclosure IP rating | IP65 |
| Base dimming interface | 1-10 V dimming |
| Base body length (cm) | 24.18 cm |
| Base body width (cm) | 24.18 cm |
| Base body depth (cm) | 8.1 cm |
| Base dimming capability | 1–10 V dimmable |
Complete delivered contents and quantity remain unverified. Request the exact selected-SKU packing list, including lamp body, driver, mounting parts, leads, sensor and emergency module where offered.
The documented normal-lighting base enclosure is IP65. This does not establish the complete sensor or emergency assembly rating or suitability for every outdoor installation; confirm the exact supplied instructions.
A published input range or shop listing does not establish UK suitability. Confirm the exact supplied driver,50Hz operation, wiring, earthing and applicable conformity before ordering.
Complete delivered contents and quantity remain unverified. Request the exact selected-SKU packing list, including lamp body, driver, mounting parts, leads, sensor and emergency module where offered.
The normal-lighting base is 1–10 V dimmable. Sensor and emergency assemblies do not inherit complete base-only ratings; their actual BOM, output, runtime, sensor identity and UK suitability remain unconfirmed. No replacement-wattage equivalence, general waterproof-system approval or UK conformity is promised.
Browse LED Outdoor Canopy Light
Browse other designs; these links do not establish compatible accessories or direct replacements.
Delivery
Tracked delivery in 3–7 working days. Delivery costs are shown at checkout before you pay, and you will receive tracking details as soon as your order ships.
Returns
Changed your mind? You can return items within 14 days of delivery. If anything arrives damaged or faulty, email ukcustomerservice@lumimuse.com with a photo and we will arrange a replacement or refund.
Specifications apply to the selected option and the components listed below.
Without Emergency Battery / Without Motion Sensor · SKU: RDCP02050605KDNSMLCD
| Control protocols | 1-10 V dimming |
|---|---|
| Input voltage (V) | 120.0–277.0 |
| Supply type | AC |
| Rated power (W) | 60.0 |
| Colour temperature (K) | 5000 |
| Length (mm) | 241.8 |
| Width (mm) | 241.8 |
| Height (mm) | 81.0 |
| IP rating | IP65 |
60 W CP05 luminaire body at fixed 5000 K, shared by the four exact listed configurations. Dimensions exclude sensor and emergency attachments. Dimming is a luminaire function; the optional sensor is described as on/off. Emergency output, runtime and accessory dimensions are not specified by these body ratings.
Without Emergency Battery / With On/off Motion Sensor +$33 ( Field Install ) · SKU: RDCP02050605KDMSMLCD
| Control protocols | 1-10 V dimming |
|---|---|
| Input voltage (V) | 120.0–277.0 |
| Supply type | AC |
| Rated power (W) | 60.0 |
| Colour temperature (K) | 5000 |
| Length (mm) | 241.8 |
| Width (mm) | 241.8 |
| Height (mm) | 81.0 |
| IP rating | IP65 |
60 W CP05 luminaire body at fixed 5000 K, shared by the four exact listed configurations. Dimensions exclude sensor and emergency attachments. Dimming is a luminaire function; the optional sensor is described as on/off. Emergency output, runtime and accessory dimensions are not specified by these body ratings.
With Emergency Battery +$95 ( Field Install ) / Without Motion Sensor · SKU: RDCP02050605KDNSMLCD-EB
| Control protocols | 1-10 V dimming |
|---|---|
| Input voltage (V) | 120.0–277.0 |
| Supply type | AC |
| Rated power (W) | 60.0 |
| Colour temperature (K) | 5000 |
| Length (mm) | 241.8 |
| Width (mm) | 241.8 |
| Height (mm) | 81.0 |
| IP rating | IP65 |
60 W CP05 luminaire body at fixed 5000 K, shared by the four exact listed configurations. Dimensions exclude sensor and emergency attachments. Dimming is a luminaire function; the optional sensor is described as on/off. Emergency output, runtime and accessory dimensions are not specified by these body ratings.
With Emergency Battery +$95 ( Field Install ) / With On/off Motion Sensor +$33 ( Field Install ) · SKU: RDCP02050605KDMSMLCD-EB
| Control protocols | 1-10 V dimming |
|---|---|
| Input voltage (V) | 120.0–277.0 |
| Supply type | AC |
| Rated power (W) | 60.0 |
| Colour temperature (K) | 5000 |
| Length (mm) | 241.8 |
| Width (mm) | 241.8 |
| Height (mm) | 81.0 |
| IP rating | IP65 |
60 W CP05 luminaire body at fixed 5000 K, shared by the four exact listed configurations. Dimensions exclude sensor and emergency attachments. Dimming is a luminaire function; the optional sensor is described as on/off. Emergency output, runtime and accessory dimensions are not specified by these body ratings.
