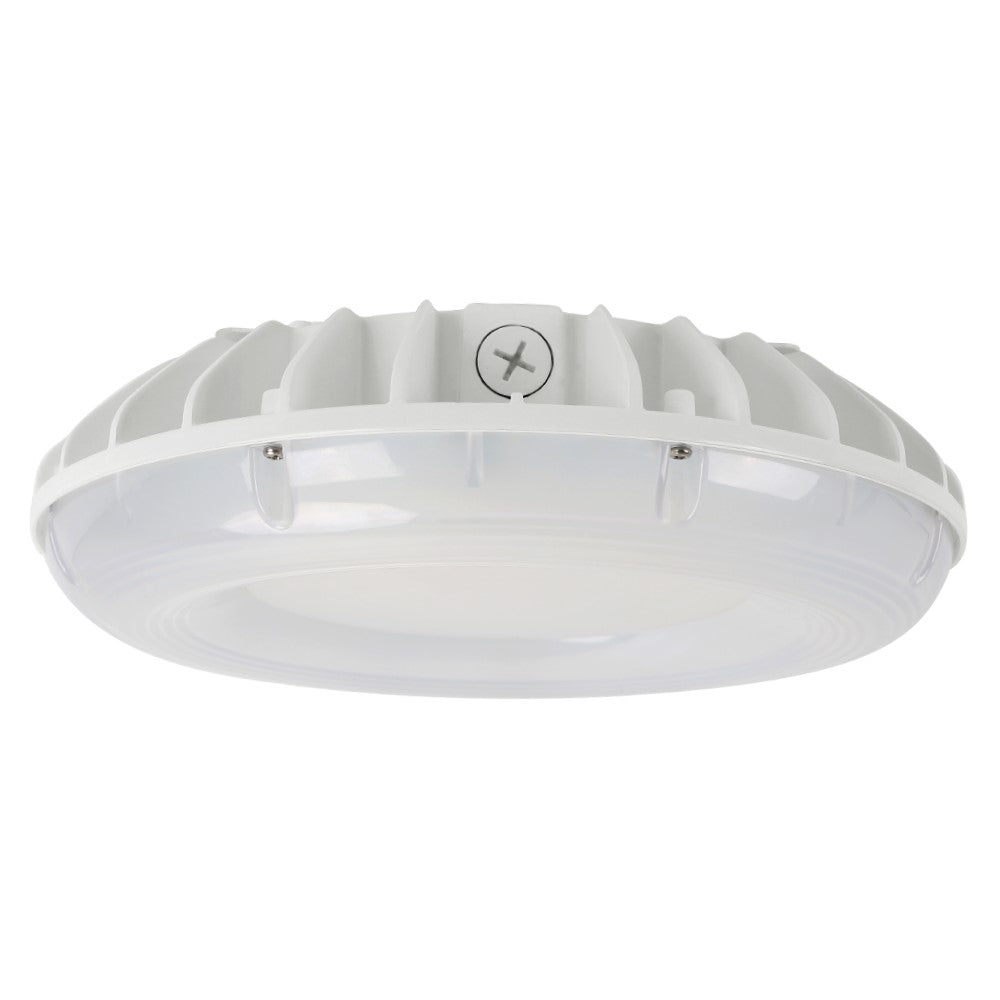

These LED canopy lights document the RDCP02030305KDNSMLW 30 W normal-lighting base with fixed 5000 K light. Compare the fitting for a planned entryway or parking-area project, then confirm the supplied revision and installation instructions.
Values apply only to the exact named base or accessory and selected configuration. They do not establish unverified complete assemblies.
| Shop option reference | RDCP02030305KDNSMLW — Without Motion Sensor / Without Emergency Battery |
|---|---|
| Scope | Documented RDCP02030305KDNSMLW normal-lighting base only; exact named configuration, no optional accessory performance inferred. |
| Documented normal-lighting base model | RDCP02030305KDNSMLW |
| Base input minimum (V) | 120 V |
| Base input maximum (V) | 277 V |
| Supply type | AC |
| Normal-lighting base power (W) | 30 W |
| Fixed base colour temperature (K) | 5000 K |
| Documented bare-base IP rating | IP66 |
| Bare body diameter (cm) | 30.475 cm |
| Bare body depth (cm) | 8.43 cm |
| Documented base colour | White |
| Shop option reference | RDCP02030305KDNSMLW-EB — Without Motion Sensor / With Emergency Battery Back-Up (Field Install) |
| Specifications | Exact selected-option specifications are unconfirmed; request the supplied-model label and instructions. |
| Shop option reference | RDCP02030305KDSSMLW — With PIR Motion Sensor (Field Install) / Without Emergency Battery |
| Specifications | Exact selected-option specifications are unconfirmed; request the supplied-model label and instructions. |
| Shop option reference | RDCP02030305KDSSMLW-EB — With PIR Motion Sensor (Field Install) / With Emergency Battery Back-Up (Field Install) |
| Specifications | Exact selected-option specifications are unconfirmed; request the supplied-model label and instructions. |
The full delivered packing list and quantities are unconfirmed. Confirm the exact selected fitting, driver, leads, mounting parts, fixings and any optional sensor or emergency equipment.
No. The CP03 installation guide excludes petrol stations and corrosive gas or liquid environments.
Use only the exact named configuration in the table. Unverified sensor, emergency and mounting assemblies need separate ratings and parts confirmation.
The full delivered packing list and quantities are unconfirmed. Confirm the exact selected fitting, driver, leads, mounting parts, fixings and any optional sensor or emergency equipment.
Confirm the supplied-model label, instructions and selected configuration before ordering. A voltage range alone does not establish UK installation conformity, wiring or complete accessory-assembly suitability. The pendant thread and dimming interface require confirmation; do not select accessories from thread assumptions.
Browse LED Outdoor Canopy Light
Other items to browse; these links do not establish compatible parts or direct replacements.
Delivery
Tracked delivery in 3–7 working days. Delivery costs are shown at checkout before you pay, and you will receive tracking details as soon as your order ships.
Returns
Changed your mind? You can return items within 14 days of delivery. If anything arrives damaged or faulty, email ukcustomerservice@lumimuse.com with a photo and we will arrange a replacement or refund.
Specifications apply to the selected option and the components listed below.
Without Motion Sensor / Without Emergency Battery · SKU: RDCP02030305KDNSMLW
| Input voltage (V) | 120.0–277.0 |
|---|---|
| Supply type | AC |
| Rated power (W) | 30.0 |
| Colour temperature (K) | 5000 |
| Length (mm) | 304.75 |
| Width (mm) | 304.75 |
| Height (mm) | 84.3 |
| IP rating | IP66 |
30 W normal-operation luminaire body; fixed 5000 K. Shared luminaire-body facts for the listed options; exclude optional sensor and emergency kit. Round body: length and width each represent its 304.75 mm diameter; 84.3 mm is body depth, excluding the projecting sensor. Input rating does not establish UK installation approval. Confirm driver dimming range.
Without Motion Sensor / With Emergency Battery Back-Up +$105 (Field Install) · SKU: RDCP02030305KDNSMLW-EB
| Input voltage (V) | 120.0–277.0 |
|---|---|
| Supply type | AC |
| Rated power (W) | 30.0 |
| Colour temperature (K) | 5000 |
| Length (mm) | 304.75 |
| Width (mm) | 304.75 |
| Height (mm) | 84.3 |
| IP rating | IP66 |
30 W normal-operation luminaire body; fixed 5000 K. Shared luminaire-body facts for the listed options; exclude optional sensor and emergency kit. Round body: length and width each represent its 304.75 mm diameter; 84.3 mm is body depth, excluding the projecting sensor. Input rating does not establish UK installation approval. Confirm driver dimming range.
With PIR Motion Sensor +$35 (Field Install) / Without Emergency Battery · SKU: RDCP02030305KDSSMLW
| Input voltage (V) | 120.0–277.0 |
|---|---|
| Supply type | AC |
| Rated power (W) | 30.0 |
| Colour temperature (K) | 5000 |
| Length (mm) | 304.75 |
| Width (mm) | 304.75 |
| Height (mm) | 84.3 |
| IP rating | IP66 |
30 W normal-operation luminaire body; fixed 5000 K. Shared luminaire-body facts for the listed options; exclude optional sensor and emergency kit. Round body: length and width each represent its 304.75 mm diameter; 84.3 mm is body depth, excluding the projecting sensor. Input rating does not establish UK installation approval. Confirm driver dimming range.
With PIR Motion Sensor +$35 (Field Install) / With Emergency Battery Back-Up +$105 (Field Install) · SKU: RDCP02030305KDSSMLW-EB
| Input voltage (V) | 120.0–277.0 |
|---|---|
| Supply type | AC |
| Rated power (W) | 30.0 |
| Colour temperature (K) | 5000 |
| Length (mm) | 304.75 |
| Width (mm) | 304.75 |
| Height (mm) | 84.3 |
| IP rating | IP66 |
30 W normal-operation luminaire body; fixed 5000 K. Shared luminaire-body facts for the listed options; exclude optional sensor and emergency kit. Round body: length and width each represent its 304.75 mm diameter; 84.3 mm is body depth, excluding the projecting sensor. Input rating does not establish UK installation approval. Confirm driver dimming range.
Specifications for this option are unavailable. Please confirm the required details before ordering.
