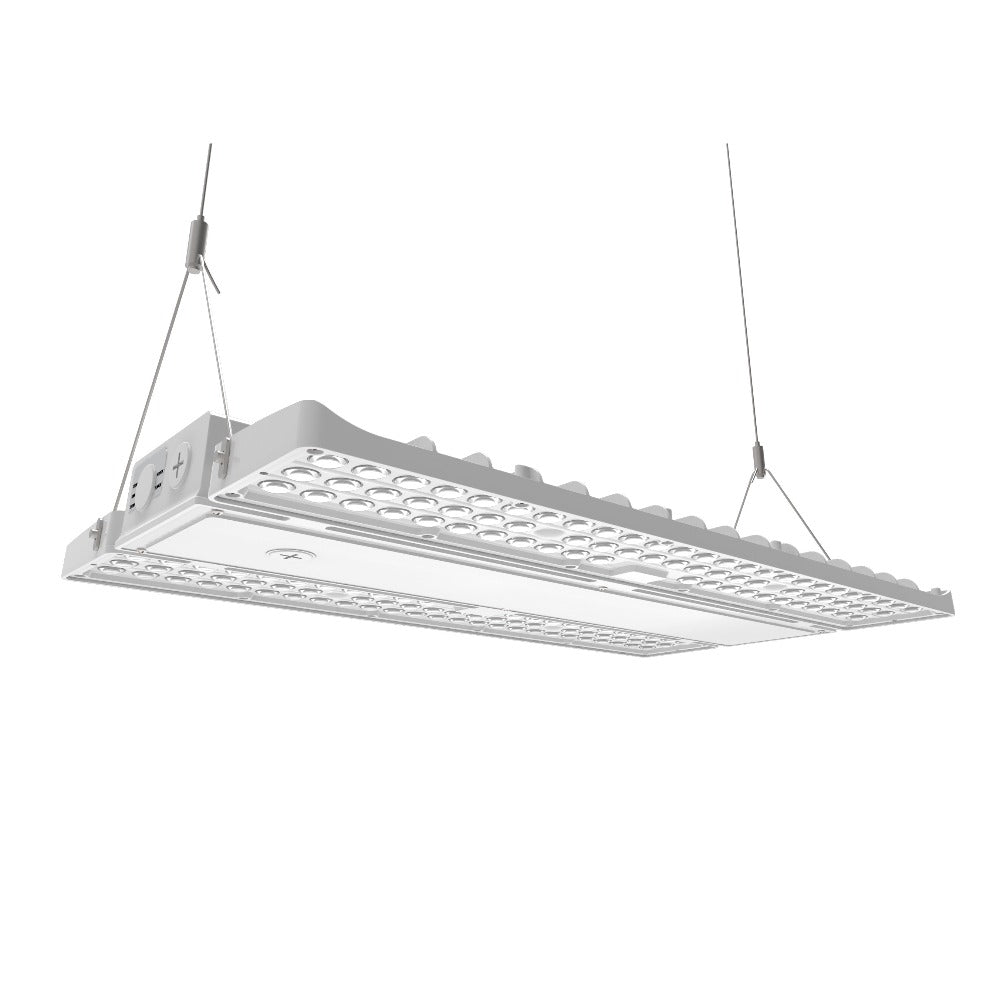

These LED high bay lights document the PAVO IV KPVMW3150KLV base family with discrete 240, 270 and 310 W normal-lighting settings and a 120–277 V AC input. Compare this fitting for a planned warehouse, garage or workshop installation, then confirm the exact supplied revision and electrical requirements.
Values apply only to the named normal-lighting base component. Sensor, backup and optical accessories are not assigned unverified assembled ratings.
| Shop option reference | KPVMW3150KLV — Without Sensor |
|---|---|
| Scope | Normal-operation luminaire body only. Sensor and emergency specifications are not included. Confirm supplied revision, colour temperature, photometric data, driver frequency and applicable UK documentation. Documented operating ambient temperature: -40 to 50 °C. This is not a temperature measurement capability. Rated power is the maximum selectable setting. |
| Base input minimum (V) | 120 V |
| Base input maximum (V) | 277 V |
| Supply type | AC |
| Maximum normal-lighting base setting (W) | 310 W |
| Base documented dimming interface | 0-10 V dimming |
| Base body length (cm) | 52.07 cm |
| Base body width (cm) | 29.21 cm |
| Base body height (cm) | 5.334 cm |
| Documented base model | KPVMW3150KLV |
| Discrete base power settings (W) | 240, 270, 310 W |
| Shop option reference | KPVMW3150KLVM — With Motion Sensor +$20 |
| Scope | Normal-operation luminaire body only. Sensor and emergency specifications are not included. Confirm supplied revision, colour temperature, photometric data, driver frequency and applicable UK documentation. Documented operating ambient temperature: -40 to 50 °C. This is not a temperature measurement capability. Rated power is the maximum selectable setting. |
| Base input minimum (V) | 120 V |
| Base input maximum (V) | 277 V |
| Supply type | AC |
| Maximum normal-lighting base setting (W) | 310 W |
| Base documented dimming interface | 0-10 V dimming |
| Base body length (cm) | 52.07 cm |
| Base body width (cm) | 29.21 cm |
| Base body height (cm) | 5.334 cm |
| Documented base model | KPVMW3150KLV |
| Discrete base power settings (W) | 240, 270, 310 W |
The complete delivered contents and quantity are unconfirmed. Request an actual packing list for the selected SKU, including lamp body, driver, leads, fixings, sensor, remote and any optional parts.
A published voltage rating or pictured plug does not establish UK suitability. Confirm the supplied electrical label, operating frequency, wiring and conformity for the intended installation.
Base normal-lighting ratings do not establish the complete accessory assembly. Exact sensor, emergency battery, reflector, bracket, control requirements and any changed optics require separate confirmation.
The complete delivered contents and quantity are unconfirmed. Request an actual packing list for the selected SKU, including lamp body, driver, leads, fixings, sensor, remote and any optional parts.
310 W is the maximum normal-lighting setting, not fixed consumption. The low-voltage LV version does not inherit HV input or nearby PAVO sizes. Exact CCT revision, light output, sensor parts, remote and UK conformity remain unconfirmed. Confirm exact supplied instructions, connection and local installation requirements before ordering.
Other designs to browse; these links do not establish compatible parts or direct replacements.
Delivery
Tracked delivery in 3–7 working days. Delivery costs are shown at checkout before you pay, and you will receive tracking details as soon as your order ships.
Returns
Changed your mind? You can return items within 14 days of delivery. If anything arrives damaged or faulty, email ukcustomerservice@lumimuse.com with a photo and we will arrange a replacement or refund.
Specifications apply to the selected option and the components listed below.
Without Sensor · SKU: KPVMW3150KLV
| Control protocols | 0-10 V dimming |
|---|---|
| Input voltage (V) | 120.0–277.0 |
| Supply type | AC |
| Rated power (W) | 310.0 |
| Length (mm) | 520.7 |
| Width (mm) | 292.1 |
| Height (mm) | 53.34 |
Normal-operation luminaire body only. Sensor and emergency specifications are not included. Confirm supplied revision, colour temperature, photometric data, driver frequency and applicable UK documentation. Documented operating ambient temperature: -40 to 50 °C. This is not a temperature measurement capability. Rated power is the maximum selectable setting.
With Motion Sensor +$20 · SKU: KPVMW3150KLVM
| Control protocols | 0-10 V dimming |
|---|---|
| Input voltage (V) | 120.0–277.0 |
| Supply type | AC |
| Rated power (W) | 310.0 |
| Length (mm) | 520.7 |
| Width (mm) | 292.1 |
| Height (mm) | 53.34 |
Normal-operation luminaire body only. Sensor and emergency specifications are not included. Confirm supplied revision, colour temperature, photometric data, driver frequency and applicable UK documentation. Documented operating ambient temperature: -40 to 50 °C. This is not a temperature measurement capability. Rated power is the maximum selectable setting.
Specifications for this option are unavailable. Please confirm the required details before ordering.
