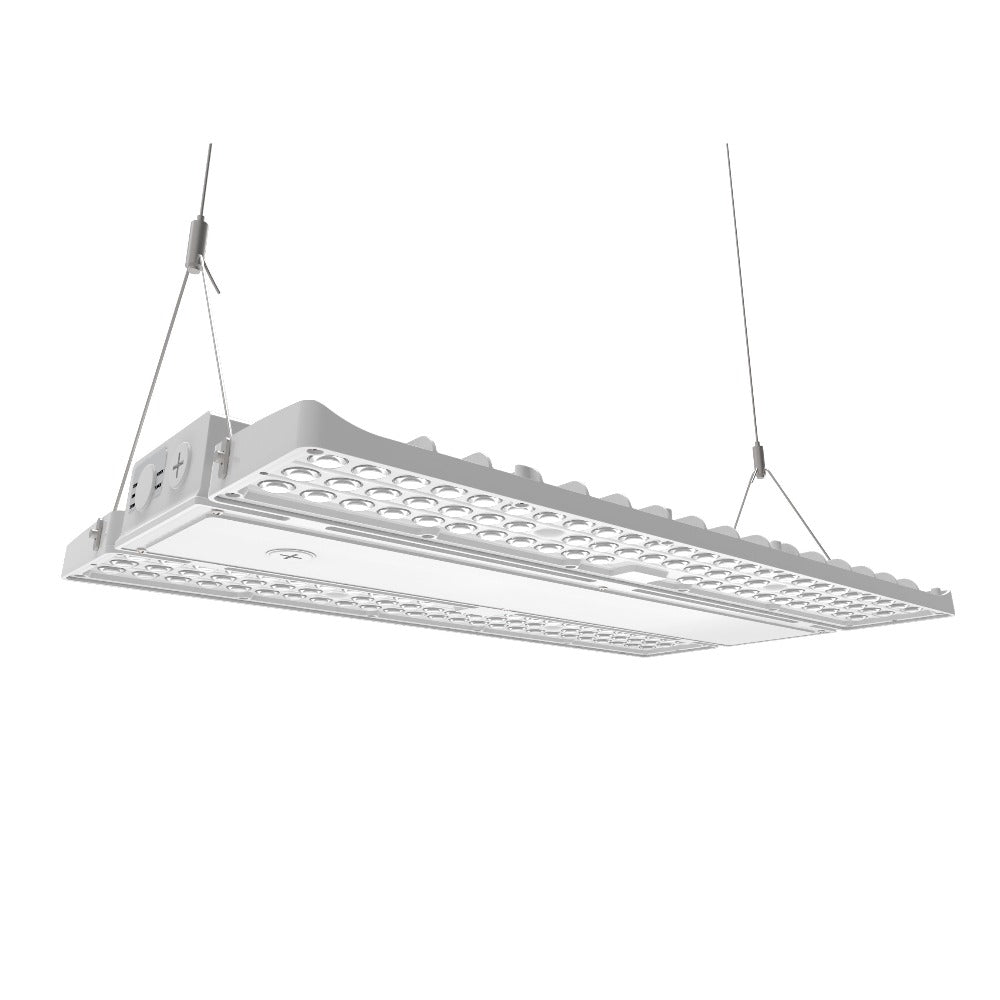

These LED high bay lights document the PAVO IV HV base family with discrete 240, 270 and 310 W normal-lighting settings. Compare this fitting for a planned warehouse, garage or workshop installation; the exact input-voltage minimum and complete range remain unconfirmed because original source statements conflict.
The exact minimum input voltage and full operating range are unconfirmed because original specifications conflict. A 480 V upper figure does not establish the full input range.
Values apply only to the named normal-lighting base component. Sensor, backup and optical accessories are not assigned unverified assembled ratings.
| Shop option reference | KPVMW3150KHV — Without Sensor |
|---|---|
| Scope | Normal-operation luminaire body only; sensor and emergency specifications are excluded. The exact HTML table states 270–480 V but its product heading/body and the shared PDF ordering state 277–480 V. The minimum and complete input range are unconfirmed. The common 480 V upper figure alone is not a complete operating range. Both documented lower bounds exclude direct 230 V line-neutral connection; no general UK suitability or industrial supply approval is inferred. Confirm supplied revision, CCT, photometry, driver frequency and UK documentation. Documented ambient temperature -40 to 50 °C is not measurement capability. Rated power is the maximum selectable base setting. |
| Shared documented upper input figure only (V) | 480 V |
| Supply type | AC |
| Maximum normal-lighting base setting (W) | 310 W |
| Base documented dimming interface | 0-10 V dimming |
| Base body length (cm) | 52.07 cm |
| Base body width (cm) | 29.21 cm |
| Base body height (cm) | 5.334 cm |
| Documented base model | KPVMW3150KHV |
| Discrete base power settings (W) | 240, 270, 310 W |
| Shop option reference | KPVMW3150KHVM — With Motion Sensor +$20 (remote control required) |
| Scope | Normal-operation luminaire body only; sensor and emergency specifications are excluded. The exact HTML table states 270–480 V but its product heading/body and the shared PDF ordering state 277–480 V. The minimum and complete input range are unconfirmed. The common 480 V upper figure alone is not a complete operating range. Both documented lower bounds exclude direct 230 V line-neutral connection; no general UK suitability or industrial supply approval is inferred. Confirm supplied revision, CCT, photometry, driver frequency and UK documentation. Documented ambient temperature -40 to 50 °C is not measurement capability. Rated power is the maximum selectable base setting. |
| Shared documented upper input figure only (V) | 480 V |
| Supply type | AC |
| Maximum normal-lighting base setting (W) | 310 W |
| Base documented dimming interface | 0-10 V dimming |
| Base body length (cm) | 52.07 cm |
| Base body width (cm) | 29.21 cm |
| Base body height (cm) | 5.334 cm |
| Documented base model | KPVMW3150KHV |
| Discrete base power settings (W) | 240, 270, 310 W |
The complete delivered contents and quantity are unconfirmed. Request an actual packing list for the selected SKU, including lamp body, driver, leads, fixings, sensor, remote and any optional parts.
Do not connect this HV model directly to a 230 V line-neutral supply: both conflicting published lower bounds exceed 230 V. The precise minimum and complete input range remain unconfirmed. Confirm the actual driver label, operating frequency, wiring and UK conformity for the intended installation.
Base normal-lighting ratings do not establish the complete accessory assembly. Exact sensor, emergency battery, reflector, bracket, control requirements and any changed optics require separate confirmation.
The complete delivered contents and quantity are unconfirmed. Request an actual packing list for the selected SKU, including lamp body, driver, leads, fixings, sensor, remote and any optional parts.
Both published input-voltage lower bounds exclude direct 230 V line-neutral connection. The precise lower bound and full operating range remain unresolved; the common 480 V upper figure alone is not a complete rating. This HV model does not inherit the LV driver or low-voltage emergency accessory rating. Exact CCT, light output, sensor and remote, ingress rating and UK installation conformity remain unconfirmed; 310 W is the maximum selectable base setting. Confirm exact supplied instructions, connection and local installation requirements before ordering.
Other designs to browse; these links do not establish compatible parts or direct replacements.
Delivery
Tracked delivery in 3–7 working days. Delivery costs are shown at checkout before you pay, and you will receive tracking details as soon as your order ships.
Returns
Changed your mind? You can return items within 14 days of delivery. If anything arrives damaged or faulty, email ukcustomerservice@lumimuse.com with a photo and we will arrange a replacement or refund.
Specifications apply to the selected option and the components listed below.
Without Sensor · SKU: KPVMW3150KHV
| Control protocols | 0-10 V dimming |
|---|---|
| Input voltage (V) | 277.0–480.0 |
| Supply type | AC |
| Rated power (W) | 310.0 |
| Length (mm) | 520.7 |
| Width (mm) | 292.1 |
| Height (mm) | 53.34 |
Normal-operation luminaire body only. Sensor and emergency specifications are not included. Confirm supplied revision, colour temperature, photometric data, driver frequency and applicable UK documentation. Documented operating ambient temperature: -40 to 50 °C. This is not a temperature measurement capability. Rated 277-480 V AC excludes standard UK 230 V. A nominal 400 V industrial supply is within this numerical range, but exact-driver frequency, installation and UK suitability remain unverified; this is not a US-only classification. Rated power is the maximum selectable setting.
With Motion Sensor +$20 (remote control required) · SKU: KPVMW3150KHVM
| Control protocols | 0-10 V dimming |
|---|---|
| Input voltage (V) | 277.0–480.0 |
| Supply type | AC |
| Rated power (W) | 310.0 |
| Length (mm) | 520.7 |
| Width (mm) | 292.1 |
| Height (mm) | 53.34 |
Normal-operation luminaire body only. Sensor and emergency specifications are not included. Confirm supplied revision, colour temperature, photometric data, driver frequency and applicable UK documentation. Documented operating ambient temperature: -40 to 50 °C. This is not a temperature measurement capability. Rated 277-480 V AC excludes standard UK 230 V. A nominal 400 V industrial supply is within this numerical range, but exact-driver frequency, installation and UK suitability remain unverified; this is not a US-only classification. Rated power is the maximum selectable setting.
Specifications for this option are unavailable. Please confirm the required details before ordering.
