LED Area Lights in this listing are offered in the configurations below. Match the exact model, mounting arrangement and control option to your installation plan.
These are documented fixture ratings, not a guarantee of the current supplied revision. Mounting and control accessories require their own checks.
| Exact model | Listed mounting/control option | Documented specifications |
|---|---|---|
| RDAL02040705KDNSFL3D | Slip Fitter / Without photocell — cap contents unconfirmed | Power: 70 W; Fixed CCT: 5000 K; Documented output: 9600 lm; Input: 120–277 V AC |
| RDAL02040705KDPSFL3D | Slip Fitter / With Dusk to Dawn Photocell | Power: 70 W; Fixed CCT: 5000 K; Documented output: 9600 lm; Input: 120–277 V AC |
| RDAL02040705KDNEXL3D | Extrusion Arm / Pole Mount (square/round) / Without photocell — cap contents unconfirmed | Power: 70 W; Fixed CCT: 5000 K; Documented output: 9600 lm; Input: 120–277 V AC |
| RDAL02040705KDPEXL3D | Extrusion Arm / Pole Mount (square/round) / With Dusk to Dawn Photocell | Power: 70 W; Fixed CCT: 5000 K; Documented output: 9600 lm; Input: 120–277 V AC |
| RDAL02040705KDNTRL3D | Yoke / Trunnion Mount / Without photocell — cap contents unconfirmed | Power: 70 W; Fixed CCT: 5000 K; Documented output: 9600 lm; Input: 120–277 V AC |
| RDAL02040705KDPTRL3D | Yoke / Trunnion Mount / With Dusk to Dawn Photocell | Power: 70 W; Fixed CCT: 5000 K; Documented output: 9600 lm; Input: 120–277 V AC |
| RDAL02040705KDNWML3D | Wall Mount / Without photocell — cap contents unconfirmed | Power: 70 W; Fixed CCT: 5000 K; Documented output: 9600 lm; Input: 120–277 V AC |
| RDAL02040705KDPWML3D | Wall Mount / With Dusk to Dawn Photocell | Power: 70 W; Fixed CCT: 5000 K; Documented output: 9600 lm; Input: 120–277 V AC |
Published output or other technical information can differ between source revisions. Confirm current photometric information before designing coverage.
The complete packing list is awaiting confirmation. Check the mounting parts, fixings, photocell, receptacle and any cap supplied with the selected option.
Cap and receptacle inclusion are not confirmed by an N code or a catalogue option label. Confirm the supplied components before ordering.
No universal mounting compatibility is established. Check the mating geometry, supporting structure, fixing pattern and load for the selected assembly.
Confirm input frequency, electrical connections and applicable conformity documents for the actual supplied unit. Voltage range alone is insufficient.
Confirm the fitted control, driver and accessible connections. Photocell fitting arrangements and applicable installation limits depend on the selected configuration.
Use a qualified installer. Obtain the instructions for the supplied mounting assembly and confirm sealing, support and electrical requirements before installation.
LED Outdoor Area or Flood Light. Other products to browse: LED Area Lights — Type V Mounting Options, LED Area Lights — 200 W, 5000 K, Type III. These links do not imply compatibility.
Delivery
Tracked delivery in 3–7 working days. Delivery costs are shown at checkout before you pay, and you will receive tracking details as soon as your order ships.
Returns
Changed your mind? You can return items within 14 days of delivery. If anything arrives damaged or faulty, email ukcustomerservice@lumimuse.com with a photo and we will arrange a replacement or refund.
Specifications apply to the selected option and the components listed below.
Slip Fitter / With Shorting Cap · SKU: RDAL02040705KDNSFL3D
| Input voltage (V) | 120.0–277.0 |
|---|---|
| Supply type | AC |
| Rated power (W) | 70.0 |
| Luminous flux (lm) | 9600 |
| Colour temperature (K) | 5000 |

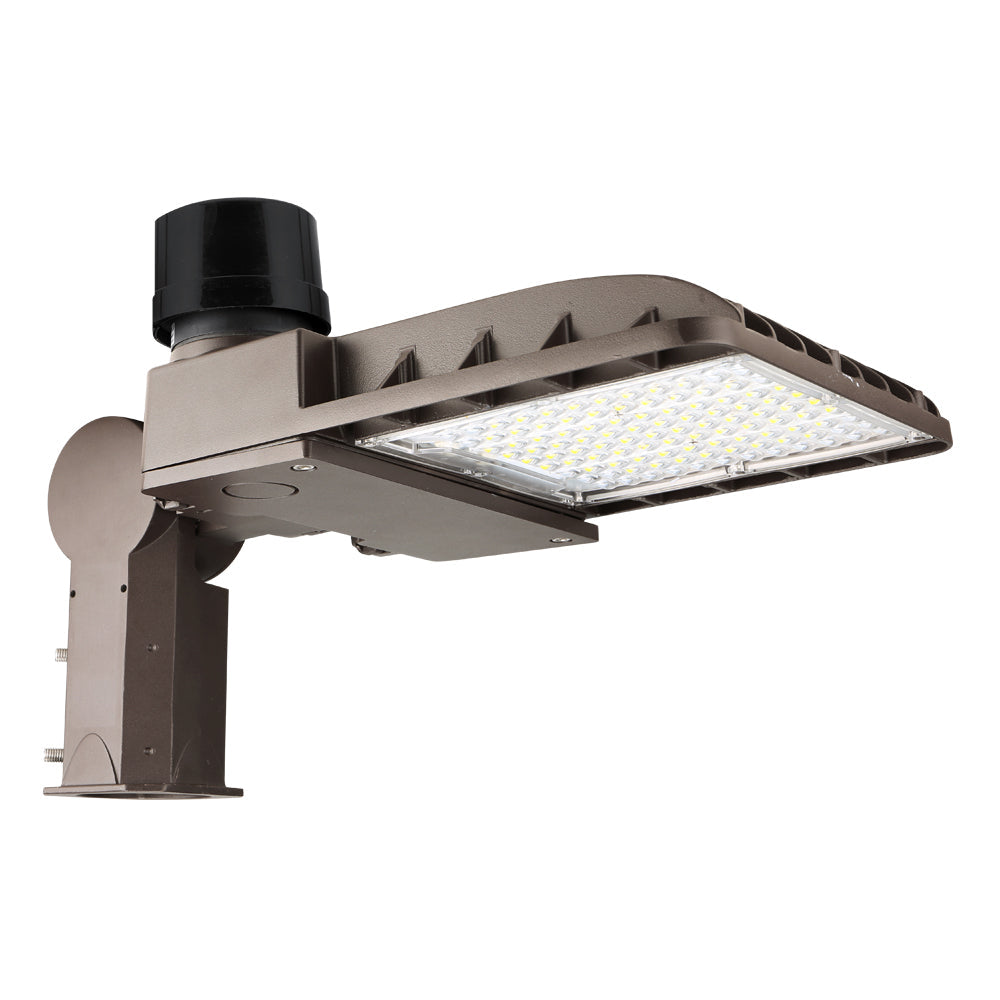

One RDAL02040705KDNSFL3D luminaire with slipfitter mounting and Type III distribution. Ratings follow the manufacturer's January 2022 specification. Confirm supplied revision, photocell or cap contents, dimming connection and UK installation suitability.
Slip Fitter / With Dusk to Dawn Photocell +$15 · SKU: RDAL02040705KDPSFL3D
| Input voltage (V) | 120.0–277.0 |
|---|---|
| Supply type | AC |
| Rated power (W) | 70.0 |
| Luminous flux (lm) | 9600 |
| Colour temperature (K) | 5000 |
One RDAL02040705KDPSFL3D luminaire with slipfitter mounting and Type III distribution. Ratings follow the manufacturer's January 2022 specification. Confirm supplied revision, photocell or cap contents, dimming connection and UK installation suitability.
Extrusion Arm / Pole Mount (square/round) / With Shorting Cap · SKU: RDAL02040705KDNEXL3D
| Input voltage (V) | 120.0–277.0 |
|---|---|
| Supply type | AC |
| Rated power (W) | 70.0 |
| Luminous flux (lm) | 9600 |
| Colour temperature (K) | 5000 |
One RDAL02040705KDNEXL3D luminaire with extrusion arm mounting and Type III distribution. Ratings follow the manufacturer's January 2022 specification. Confirm supplied revision, photocell or cap contents, dimming connection and UK installation suitability.
Extrusion Arm / Pole Mount (square/round) / With Dusk to Dawn Photocell +$15 · SKU: RDAL02040705KDPEXL3D
| Input voltage (V) | 120.0–277.0 |
|---|---|
| Supply type | AC |
| Rated power (W) | 70.0 |
| Luminous flux (lm) | 9600 |
| Colour temperature (K) | 5000 |
One RDAL02040705KDPEXL3D luminaire with extrusion arm mounting and Type III distribution. Ratings follow the manufacturer's January 2022 specification. Confirm supplied revision, photocell or cap contents, dimming connection and UK installation suitability.
Yoke / Trunnion Mount / With Shorting Cap · SKU: RDAL02040705KDNTRL3D
| Input voltage (V) | 120.0–277.0 |
|---|---|
| Supply type | AC |
| Rated power (W) | 70.0 |
| Luminous flux (lm) | 9600 |
| Colour temperature (K) | 5000 |
One RDAL02040705KDNTRL3D luminaire with yoke/trunnion mounting and Type III distribution. Ratings follow the manufacturer's January 2022 specification. Confirm supplied revision, photocell or cap contents, dimming connection and UK installation suitability.
Yoke / Trunnion Mount / With Dusk to Dawn Photocell +$15 · SKU: RDAL02040705KDPTRL3D
| Input voltage (V) | 120.0–277.0 |
|---|---|
| Supply type | AC |
| Rated power (W) | 70.0 |
| Luminous flux (lm) | 9600 |
| Colour temperature (K) | 5000 |
One RDAL02040705KDPTRL3D luminaire with yoke/trunnion mounting and Type III distribution. Ratings follow the manufacturer's January 2022 specification. Confirm supplied revision, photocell or cap contents, dimming connection and UK installation suitability.
Wall Mount / With Shorting Cap · SKU: RDAL02040705KDNWML3D
| Input voltage (V) | 120.0–277.0 |
|---|---|
| Supply type | AC |
| Rated power (W) | 70.0 |
| Luminous flux (lm) | 9600 |
| Colour temperature (K) | 5000 |
One RDAL02040705KDNWML3D luminaire with wall mount mounting and Type III distribution. Ratings follow the manufacturer's January 2022 specification. Confirm supplied revision, photocell or cap contents, dimming connection and UK installation suitability.
Wall Mount / With Dusk to Dawn Photocell +$15 · SKU: RDAL02040705KDPWML3D
| Input voltage (V) | 120.0–277.0 |
|---|---|
| Supply type | AC |
| Rated power (W) | 70.0 |
| Luminous flux (lm) | 9600 |
| Colour temperature (K) | 5000 |
One RDAL02040705KDPWML3D luminaire with wall mount mounting and Type III distribution. Ratings follow the manufacturer's January 2022 specification. Confirm supplied revision, photocell or cap contents, dimming connection and UK installation suitability.
Specifications for this option are unavailable. Please confirm the required details before ordering.
