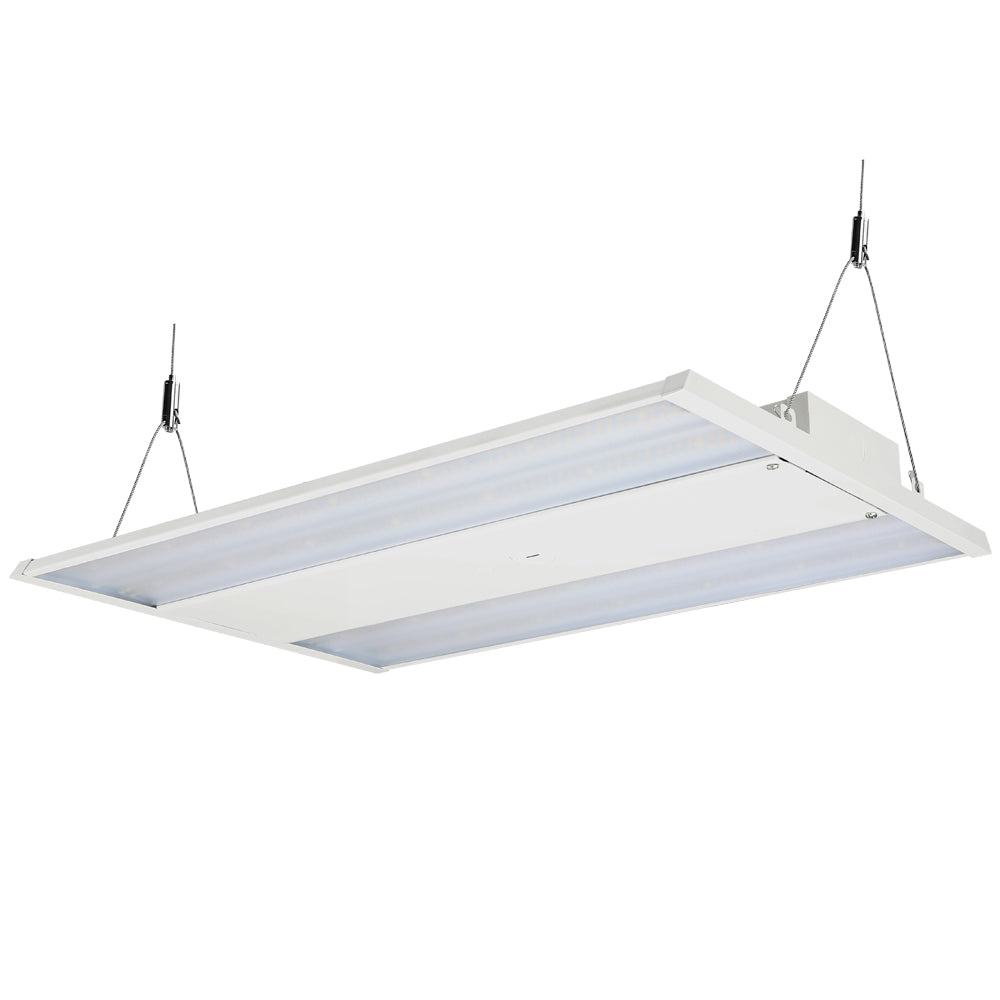

These LED high bay lights document the RDLH02040904KDN12LC normal-lighting base with a 90 W rating and fixed 4000 K light. Compare this fitting for a planned warehouse, garage or workshop installation, then confirm the exact selected option and supplied electrical instructions.
Values describe only the exact named normal-lighting base and selected option. They do not establish an unverified accessory or kit assembly rating.
| Shop option reference | RDLH02040904KDN12LC — Without Motion Sensor / Without Emergency Battery Back-Up |
|---|---|
| Scope | Documented RDLH02040904KDN12LC normal-lighting base only; applies only to this exact without-accessory configuration. |
| Documented normal-lighting base model | RDLH02040904KDN12LC |
| Base input minimum (V) | 120 V |
| Base input maximum (V) | 277 V |
| Supply type | AC |
| Normal-lighting base power (W) | 90 W |
| Fixed base colour temperature (K) | 4000 K |
| Base body length (cm) | 60 cm |
| Base body width (cm) | 25 cm |
| Base body height (cm) | 4.44 cm |
| Shop option reference | RDLH02040904KDN12LC-EB — Without Motion Sensor / With 8W Emergency Battery |
| Specifications | Exact selected-option specifications are unconfirmed; request the supplied-model label and instructions. |
| Shop option reference | RDLH02040904KDM12LC — With PIR Motion Sensor / Without Emergency Battery Back-Up |
| Specifications | Exact selected-option specifications are unconfirmed; request the supplied-model label and instructions. |
| Shop option reference | RDLH02040904KDM12LC-EB — With PIR Motion Sensor / With 8W Emergency Battery |
| Specifications | Exact selected-option specifications are unconfirmed; request the supplied-model label and instructions. |
The full delivered packing list and quantities are unconfirmed. Request confirmation of the lamp body, driver, leads, mounting parts, sensors, controls and any optional accessories for the selected SKU.
Confirm the exact supplied driver, mains frequency, wiring, earthing and applicable conformity. A documented voltage range or pictured fitting alone does not establish UK suitability.
Use only the exact option and normal-lighting base scope stated in the table. Sensor assemblies and unmatched mounting-kit options require their own electrical, enclosure and installation details.
The full delivered packing list and quantities are unconfirmed. Request confirmation of the lamp body, driver, leads, mounting parts, sensors, controls and any optional accessories for the selected SKU.
Confirm the supplied-model label and installation instructions before ordering. Base-only specifications do not establish complete accessory-assembly performance, a direct replacement or general UK suitability.
Other designs to browse; these links do not establish compatible parts or direct replacements.
Delivery
Tracked delivery in 3–7 working days. Delivery costs are shown at checkout before you pay, and you will receive tracking details as soon as your order ships.
Returns
Changed your mind? You can return items within 14 days of delivery. If anything arrives damaged or faulty, email ukcustomerservice@lumimuse.com with a photo and we will arrange a replacement or refund.
Specifications apply to the selected option and the components listed below.
Without Motion Sensor / Without Emergency Battery Back-Up · SKU: RDLH02040904KDN12LC
| Input voltage (V) | 120.0–277.0 |
|---|---|
| Supply type | AC |
| Rated power (W) | 90.0 |
| Luminous flux (lm) | 12600 |
| Colour temperature (K) | 4000 |
| Length (mm) | 600.0 |
| Width (mm) | 250.0 |
| Height (mm) | 44.4 |
These specifications describe the luminaire during normal mains operation. They do not describe the motion sensor or emergency battery. Light output is the manufacturer’s nominal figure at 277 V AC. Dimensions are for the light body and exclude optional accessories. Confirm the fitted driver, dimming interface, accessories and suitability for a UK 50 Hz supply before installation.
Without Motion Sensor / With 8W Emergency Battery +$90 · SKU: RDLH02040904KDN12LC-EB
| Input voltage (V) | 120.0–277.0 |
|---|---|
| Supply type | AC |
| Rated power (W) | 90.0 |
| Luminous flux (lm) | 12600 |
| Colour temperature (K) | 4000 |
| Length (mm) | 600.0 |
| Width (mm) | 250.0 |
| Height (mm) | 44.4 |
These specifications describe the luminaire during normal mains operation. They do not describe the motion sensor or emergency battery. Light output is the manufacturer’s nominal figure at 277 V AC. Dimensions are for the light body and exclude optional accessories. Confirm the fitted driver, dimming interface, accessories and suitability for a UK 50 Hz supply before installation.
With PIR Motion Sensor +$35 / Without Emergency Battery Back-Up · SKU: RDLH02040904KDM12LC
| Input voltage (V) | 120.0–277.0 |
|---|---|
| Supply type | AC |
| Rated power (W) | 90.0 |
| Luminous flux (lm) | 12600 |
| Colour temperature (K) | 4000 |
| Length (mm) | 600.0 |
| Width (mm) | 250.0 |
| Height (mm) | 44.4 |
These specifications describe the luminaire during normal mains operation. They do not describe the motion sensor or emergency battery. Light output is the manufacturer’s nominal figure at 277 V AC. Dimensions are for the light body and exclude optional accessories. Confirm the fitted driver, dimming interface, accessories and suitability for a UK 50 Hz supply before installation.
With PIR Motion Sensor +$35 / With 8W Emergency Battery +$90 · SKU: RDLH02040904KDM12LC-EB
| Input voltage (V) | 120.0–277.0 |
|---|---|
| Supply type | AC |
| Rated power (W) | 90.0 |
| Luminous flux (lm) | 12600 |
| Colour temperature (K) | 4000 |
| Length (mm) | 600.0 |
| Width (mm) | 250.0 |
| Height (mm) | 44.4 |
These specifications describe the luminaire during normal mains operation. They do not describe the motion sensor or emergency battery. Light output is the manufacturer’s nominal figure at 277 V AC. Dimensions are for the light body and exclude optional accessories. Confirm the fitted driver, dimming interface, accessories and suitability for a UK 50 Hz supply before installation.
Specifications for this option are unavailable. Please confirm the required details before ordering.
