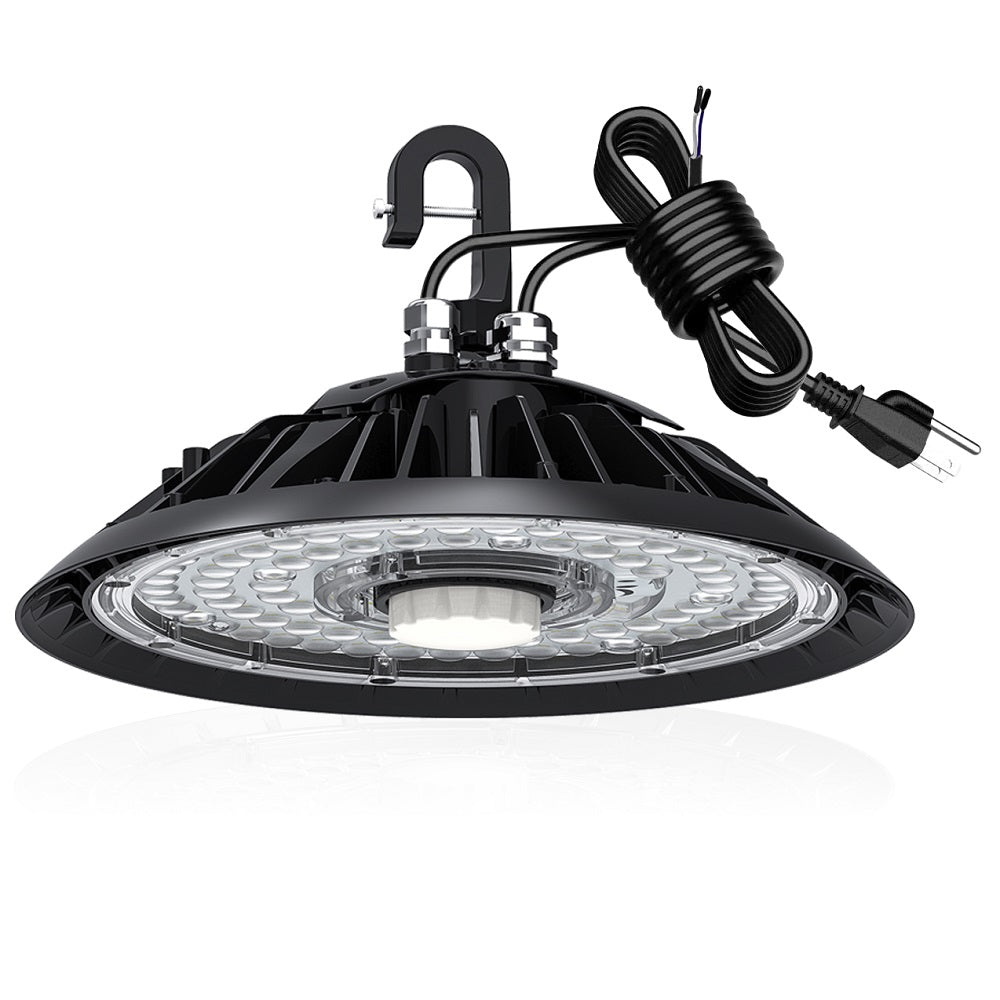

These LED high bay lights use the documented legacy RH03 200 W, fixed 5000 K light engine, with nominal 30,000 lm stated for normal operation. Compare this fitting for a planned warehouse, garage or workshop installation, then confirm the exact supplied revision and electrical requirements.
Values apply only to the named normal-lighting base component. Sensor, backup and optical accessories are not assigned unverified assembled ratings.
| Shop option reference | RKRH0301200W5KDNLCB — Without Motion Sensor |
|---|---|
| Scope | Exact legacy0301 fixed-power model; not 0302 selectable MAX. Bare luminaire IP66 from exact manufacturer source; not a substitute for installation certification. Lamp ratings only, not sensor electrical specifications. UK installation and stock revision remain unverified. |
| Base input minimum (V) | 120 V |
| Base input maximum (V) | 277 V |
| Supply type | AC |
| Normal-lighting base power (W) | 200 W |
| Nominal base light output (lm) | 30000 lm |
| Base colour temperature minimum (K) | 5000 K |
| Base beam angle (degrees) | 120 degrees |
| Base documented dimming interface | 0–10 V dimming |
| Base documented IP code | IP66 |
| Documented base model | RKRH0301200W5KDNLCB |
| Shop option reference | RKRH0301200W5KDMLCB — With PIR Motion Sensor +$18 (Remote Control Required) |
| Scope | Exact legacy0301 fixed-power model; not 0302 selectable MAX. PIR-equipped option: IP rating withheld because PDF limits sensor-equipped assembly to IP65. Lamp ratings only, not sensor electrical specifications. UK installation and stock revision remain unverified. |
| Base input minimum (V) | 120 V |
| Base input maximum (V) | 277 V |
| Supply type | AC |
| Normal-lighting base power (W) | 200 W |
| Nominal base light output (lm) | 30000 lm |
| Base colour temperature minimum (K) | 5000 K |
| Base beam angle (degrees) | 120 degrees |
| Base documented dimming interface | 0–10 V dimming |
| Documented base model | RKRH0301200W5KDMLCB |
The complete delivered contents and quantity are unconfirmed. Request an actual packing list for the selected SKU, including lamp body, driver, leads, fixings, sensor, remote and any optional parts.
A published voltage rating or pictured plug does not establish UK suitability. Confirm the supplied electrical label, operating frequency, wiring and conformity for the intended installation.
Base normal-lighting ratings do not establish the complete accessory assembly. Exact sensor, emergency battery, reflector, bracket, control requirements and any changed optics require separate confirmation.
The complete delivered contents and quantity are unconfirmed. Request an actual packing list for the selected SKU, including lamp body, driver, leads, fixings, sensor, remote and any optional parts.
Bare-fixture IP66 must not be applied to the PIR-equipped option; the sensor identity, settings and remote inclusion remain unconfirmed. Confirm exact supplied instructions, connection and local installation requirements before ordering.
Other designs to browse; these links do not establish compatible parts or direct replacements.
Delivery
Tracked delivery in 3–7 working days. Delivery costs are shown at checkout before you pay, and you will receive tracking details as soon as your order ships.
Returns
Changed your mind? You can return items within 14 days of delivery. If anything arrives damaged or faulty, email ukcustomerservice@lumimuse.com with a photo and we will arrange a replacement or refund.
Specifications apply to the selected option and the components listed below.
Without Motion Sensor · SKU: RKRH0301200W5KDNLCB
| Control protocols | 0–10 V dimming |
|---|---|
| Input voltage (V) | 120.0–277.0 |
| Supply type | AC |
| Rated power (W) | 200.0 |
| Luminous flux (lm) | 30000 |
| Colour temperature (K) | 5000 |
| Beam angle (°) | 120.0 |
| IP rating | IP66 |
Exact legacy0301 fixed-power model; not 0302 selectable MAX. Bare luminaire IP66 from exact manufacturer source; not a substitute for installation certification. Lamp ratings only, not sensor electrical specifications. UK installation and stock revision remain unverified.
With PIR Motion Sensor +$18 (Remote Control Required) · SKU: RKRH0301200W5KDMLCB
| Control protocols | 0–10 V dimming |
|---|---|
| Input voltage (V) | 120.0–277.0 |
| Supply type | AC |
| Rated power (W) | 200.0 |
| Luminous flux (lm) | 30000 |
| Colour temperature (K) | 5000 |
| Beam angle (°) | 120.0 |
Exact legacy0301 fixed-power model; not 0302 selectable MAX. PIR-equipped option: IP rating withheld because PDF limits sensor-equipped assembly to IP65. Lamp ratings only, not sensor electrical specifications. UK installation and stock revision remain unverified.
Specifications for this option are unavailable. Please confirm the required details before ordering.
