These LED area lights use the Vela I dark bronze Type III ordering configuration with fixed 5000 K light and four discrete power settings: 80 W, 100 W, 120 W, 150 W. Compare mounting and control choices for an outdoor area or car-park layout and confirm the supplied revision before installation.
| Documented fixture AC input | 277–480 V AC |
|---|---|
| Fixed colour temperature | 5000 K |
| Distribution class | Type III |
| Documented housing and lens | Die-cast aluminium housing |
| Documented finish | Dark bronze |
| Discrete fixture power settings | 80 / 100 / 120 / 150 W |
| Documented input frequency | 50 / 60 Hz |
| Option: Slip-fitter mount / Short-cap choice | SKU KVLLMW50KHV3SF |
| Option: Extrusion arm / Short-cap choice | SKU KVLLMW50KHV3EX |
| Option: Yoke mount / Short-cap choice | SKU KVLLMW50KHV3YK |
| Option: Wall mount / Short-cap choice | SKU KVLLMW50KHV3WM |
| Option: Combined slip-fitter and extrusion-arm bracket / Short-cap choice | SKU KVLLMW50KHV3UN |
The complete delivered package and quantities are unconfirmed. Request the exact selected-SKU packing list before ordering. Optional mounting, sensor, emergency and photocell parts are not established as included.
The complete delivered contents are unconfirmed. Check the fixture, driver, selected mounting parts, controls, leads, fixings and quantities. A pictured support or control does not establish every included part.
No. Confirm the actual supplied driver, frequency, wiring and UK conformity documents for the site. Have a qualified installer assess the electrical supply and supporting structure.
The ordering configuration specifies 277–480 V AC. Exact output for the supplied revision is unconfirmed; do not transfer output from a different voltage, colour or finish. This high-voltage choice is not a direct 230 V supply option.
Follow the supplied rating labels and instructions. Confirm electrical connections, driver controls, permitted exposure, mounting geometry, fixings and structural loading. Catalogue distribution classes and wattages do not establish universal fit, replacement equivalence or guaranteed field coverage.
Browse LED Outdoor Area Lights
Other outdoor lighting listings to browse: LED area lights - Vela III White, Selectable Power and CCT and LED area lights - 100 W, 4000 K, Type IV, 13200 lm. These browsing links do not imply compatibility or substitution.
Delivery
Tracked delivery in 3–7 working days. Delivery costs are shown at checkout before you pay, and you will receive tracking details as soon as your order ships.
Returns
Changed your mind? You can return items within 14 days of delivery. If anything arrives damaged or faulty, email ukcustomerservice@lumimuse.com with a photo and we will arrange a replacement or refund.
Specifications apply to the selected option and the components listed below.

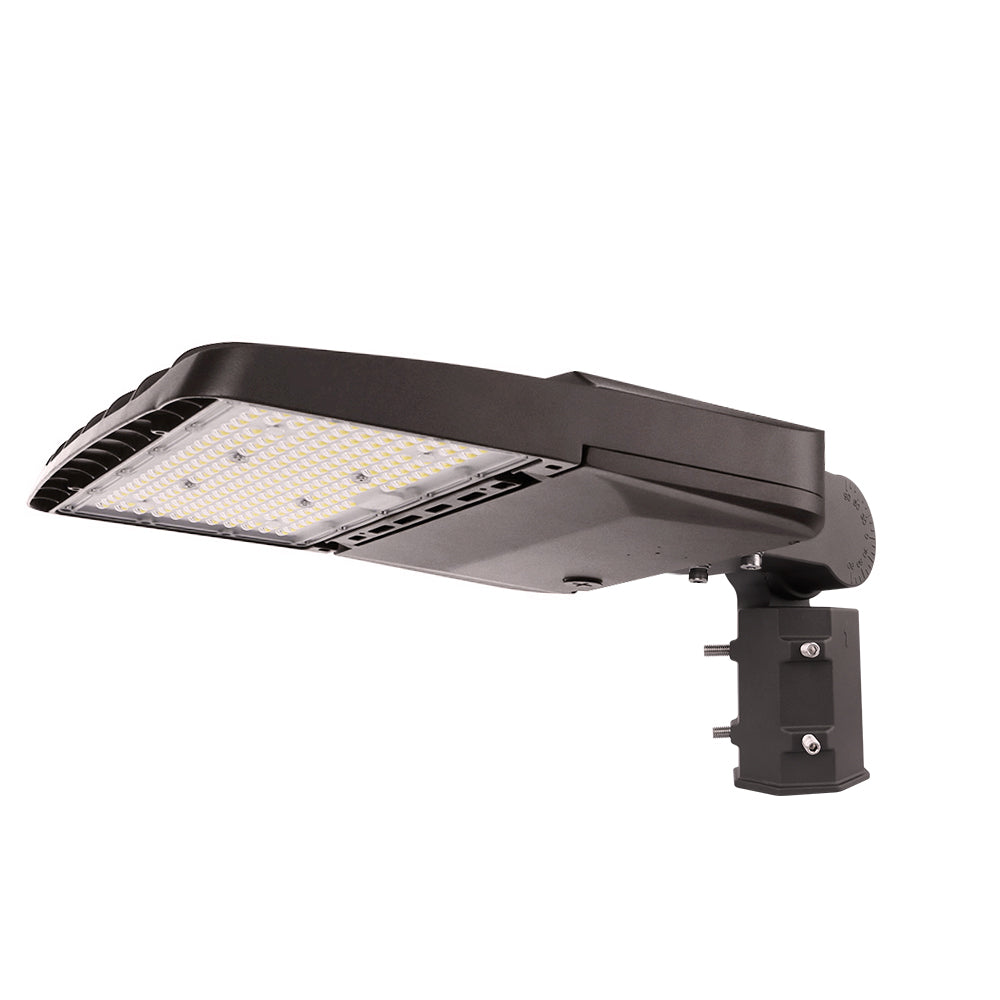

Slip Fitter · SKU: KVLLMW50KHV3SF
| Input voltage (V) | 277.0–480.0 |
|---|---|
| Colour temperature (K) | 5000 |
Original manufacturer p1 ordering grammar: KVL + LMW (150/120/100/80 W) + 50K fixed5000K + HV277–480V +3TypeIII, followed by SF/EX/YK/WM/UN. Current product at same URL now uses MC; its selectable-CCT photometry excluded.
Extrusion Arm / Pole Mount (square/round) · SKU: KVLLMW50KHV3EX
| Input voltage (V) | 277.0–480.0 |
|---|---|
| Colour temperature (K) | 5000 |
Original manufacturer p1 ordering grammar: KVL + LMW (150/120/100/80 W) + 50K fixed5000K + HV277–480V +3TypeIII, followed by SF/EX/YK/WM/UN. Current product at same URL now uses MC; its selectable-CCT photometry excluded.
Yoke / Trunnion Mount · SKU: KVLLMW50KHV3YK
| Input voltage (V) | 277.0–480.0 |
|---|---|
| Colour temperature (K) | 5000 |
Original manufacturer p1 ordering grammar: KVL + LMW (150/120/100/80 W) + 50K fixed5000K + HV277–480V +3TypeIII, followed by SF/EX/YK/WM/UN. Current product at same URL now uses MC; its selectable-CCT photometry excluded.
Wall Mount · SKU: KVLLMW50KHV3WM
| Input voltage (V) | 277.0–480.0 |
|---|---|
| Colour temperature (K) | 5000 |
Original manufacturer p1 ordering grammar: KVL + LMW (150/120/100/80 W) + 50K fixed5000K + HV277–480V +3TypeIII, followed by SF/EX/YK/WM/UN. Current product at same URL now uses MC; its selectable-CCT photometry excluded.
Universal Mount · SKU: KVLLMW50KHV3UN
| Input voltage (V) | 277.0–480.0 |
|---|---|
| Colour temperature (K) | 5000 |
Original manufacturer p1 ordering grammar: KVL + LMW (150/120/100/80 W) + 50K fixed5000K + HV277–480V +3TypeIII, followed by SF/EX/YK/WM/UN. Current product at same URL now uses MC; its selectable-CCT photometry excluded.
Specifications for this option are unavailable. Please confirm the required details before ordering.
