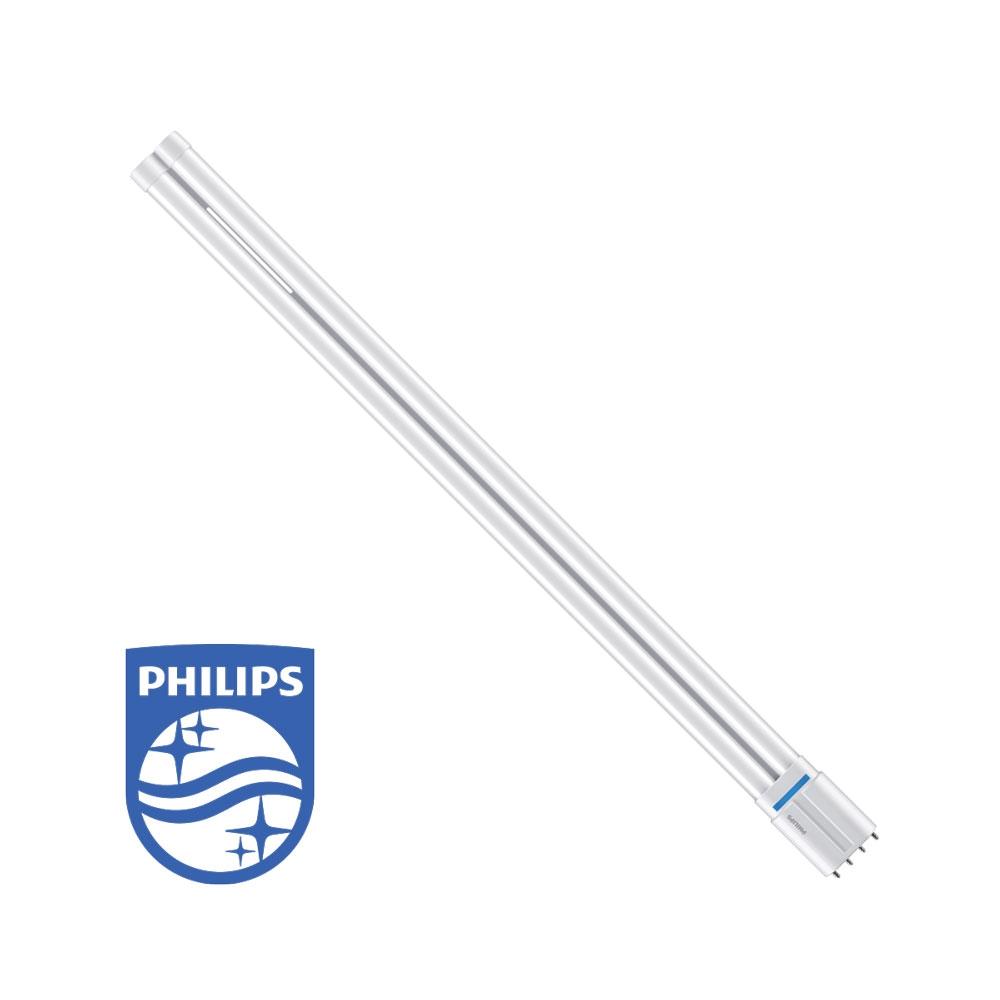

These 2G11 LED lamps are listed in the InstantFit PL-L range with 16.5 W nominal lamp power and separate 3000 K or 3500 K options. They require an exact approved electronic-ballast arrangement; the ballast/system supply rating is not a direct lamp mains-input instruction.
| Documented model reference | 16.5PL-LED/24-3000 IF 10/1 (456632) / 16.5PL-LED/24-3500 IF 10/1 (456640) |
|---|---|
| Nominal lamp power | 16.5 W |
| Documented lamp base | 2G11 |
| Documented dimming role | Not dimmable |
| Required installation mode | Type A electronic-ballast operation; match the exact approved ballast |
| Documented ballast reference and conditions | Advance ICN-1TTP40-SC — Listed for the 456632 / 456640 PL-L group in the 2024 guide; verify the actual circuit, lamp count, ballast input and supplied lamp revision |
| Catalogue option: 3000K | SKU 456632; documented 3000 K |
| Catalogue option: 3500K | SKU 456640; documented 3500 K |
The exact delivered quantities and complete contents are unconfirmed. Confirm the selected lamp count, packing list and whether any transformer, ballast, controls or fittings are supplied. Pictured logos or certification marks do not establish current warranty or conformity.
The delivered lamp quantity and complete packing list are unconfirmed. A document’s inner or outer carton quantity does not establish this store’s selected package. Ballasts, transformers, dimmers and luminaires are not confirmed inclusions.
No. The actual supplied revision, electrical conversion or ballast arrangement, mechanical fit and UK conformity documents require confirmation. Have a qualified installer assess the complete system.
The documented operating mode requires a compatible electronic ballast. Do not apply a ballast/system voltage rating directly to the lamp; verify the exact lamp code, ballast, lamp count, circuit and supply.
The dated compatibility guide lists an ICN-1TTP40-SC reference for the exact PL-L group, subject to the actual system and supplied revision. It does not establish all-ballast compatibility or UK conformity. Confirm the current approved pairing and instructions. Follow the supplied labels and instructions, disconnect power before handling and let the lamp cool before replacement.
Other lamp listings to browse: LED corn bulbs - E1CC3B36-850, 36 W, E39, 5000 K and LED corn bulbs - E1CC3B45-850, 45 W, E39, 5000 K. Browsing links do not establish compatibility or substitution.
Delivery
Tracked delivery in 3–7 working days. Delivery costs are shown at checkout before you pay, and you will receive tracking details as soon as your order ships.
Returns
Changed your mind? You can return items within 14 days of delivery. If anything arrives damaged or faulty, email ukcustomerservice@lumimuse.com with a photo and we will arrange a replacement or refund.
Specifications apply to the selected option and the components listed below.
3000K · SKU: 456632
| Rated power (W) | 16.5 |
|---|---|
| Lamp base | 2G11 |
| Colour temperature (K) | 3000 |
| Beam angle (°) | 160.0 |
Exact SKU 456632, model 456632. Per individual lamp, bare-lamp wattage excludes ballast losses. Flux remains held owing to differing guide and photometric data. UK suitability unresolved.
3500K · SKU: 456640
| Rated power (W) | 16.5 |
|---|---|
| Lamp base | 2G11 |
| Colour temperature (K) | 3500 |
| Beam angle (°) | 160.0 |
Exact SKU 456640, model 456640. Per individual lamp, bare-lamp wattage excludes ballast losses. Flux remains held owing to differing guide and photometric data. UK suitability unresolved.
Specifications for this option are unavailable. Please confirm the required details before ordering.
