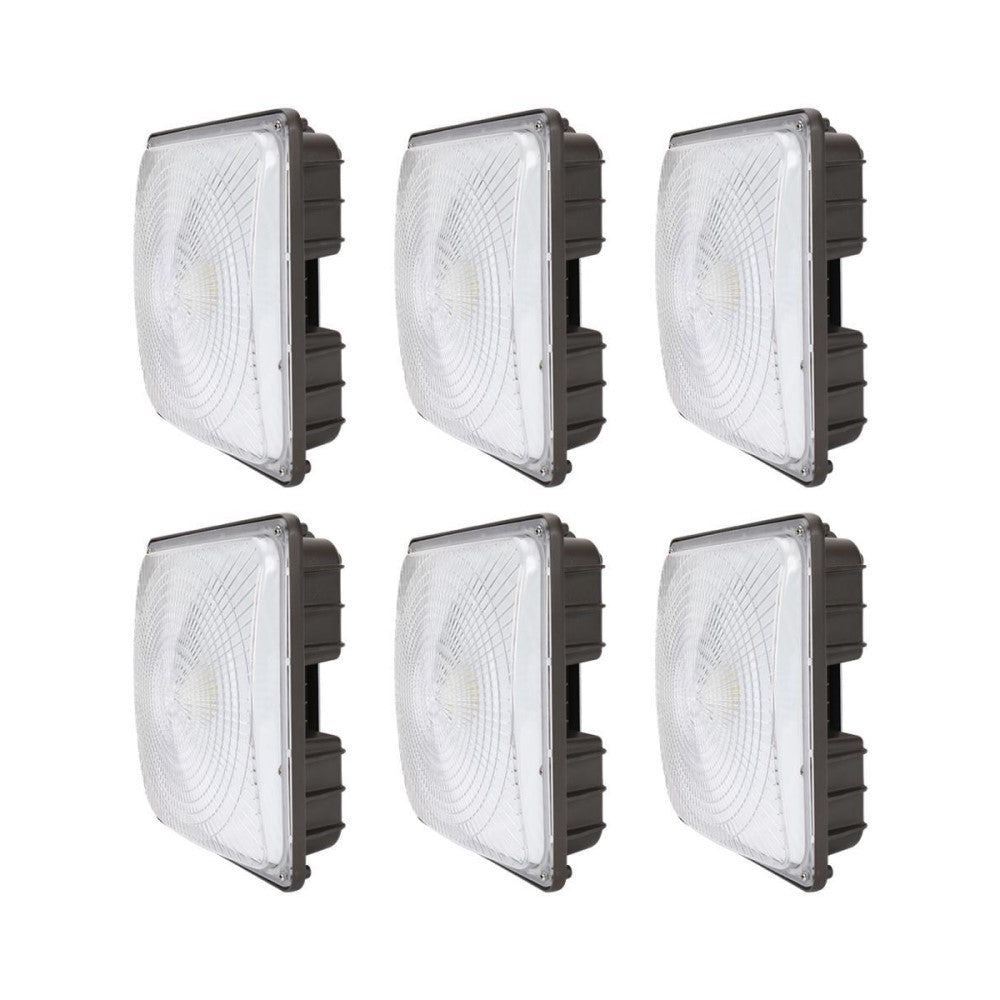

These LED canopy lights document the CP05 six-pack with 60 W per luminaire, fixed 5000 K light and 120–277 V AC input. Consider this fitting for a planned covered entrance, walkway or garage, then confirm the exact supplied electrical label and installation requirements.
Only the named normal-lighting luminaire body is described. Optional sensor, emergency and mounting attachments require their own evidence.
| Shop option reference | RDCP02050605KNNSMLCD-6PK — Without Occupancy Sensor |
|---|---|
| Scope | One 60 W CP05 luminaire within the six-pack. Fixed 5000 K; non-dimmable. Body dimensions exclude optional sensor and installation accessories. These body specifications apply to both listed control options and do not certify the fitted sensor or UK installation. The 177.8 mm figure in the drawing describes the rear mounting area, not overall body size. |
| Documented base model | RDCP02050605KNNSMLCD |
| Base input minimum (V) | 120 V |
| Base input maximum (V) | 277 V |
| Supply type | AC |
| Per-luminaire normal-lighting power (W) | 60 W |
| Fixed base colour temperature (K) | 5000 K |
| Base enclosure IP rating | IP65 |
| Base body length (cm) | 24.18 cm |
| Base body width (cm) | 24.18 cm |
| Base body depth (cm) | 8.1 cm |
| Base dimming capability | Non-dimmable |
| Shop option reference | RDCP02050605KNMSMLCD-6PK — With On/off Motion Sensor ( Field Install ) |
| Scope | One 60 W CP05 luminaire within the six-pack. Fixed 5000 K; non-dimmable. Body dimensions exclude optional sensor and installation accessories. These body specifications apply to both listed control options and do not certify the fitted sensor or UK installation. The 177.8 mm figure in the drawing describes the rear mounting area, not overall body size. |
| Documented base model | RDCP02050605KNNSMLCD |
| Base input minimum (V) | 120 V |
| Base input maximum (V) | 277 V |
| Supply type | AC |
| Per-luminaire normal-lighting power (W) | 60 W |
| Fixed base colour temperature (K) | 5000 K |
| Base enclosure IP rating | IP65 |
| Base body length (cm) | 24.18 cm |
| Base body width (cm) | 24.18 cm |
| Base body depth (cm) | 8.1 cm |
| Base dimming capability | Non-dimmable |
The exact source lists six base luminaires. A complete packing list and accessory quantities remain unverified; request confirmation of sensors, drivers, remotes, fixings and leads.
The documented normal-lighting base enclosure is IP65. This does not establish the complete sensor or emergency assembly rating or suitability for every outdoor installation; confirm the exact supplied instructions.
A published input range or shop listing does not establish UK suitability. Confirm the exact supplied driver,50Hz operation, wiring, earthing and applicable conformity before ordering.
The exact source lists six base luminaires. A complete packing list and accessory quantities remain unverified; request confirmation of sensors, drivers, remotes, fixings and leads.
The normal-lighting base is non-dimmable. Sensor and emergency assemblies do not inherit complete base-only ratings; their actual BOM, output, runtime, sensor identity and UK suitability remain unconfirmed. No replacement-wattage equivalence, general waterproof-system approval or UK conformity is promised.
Browse LED Outdoor Canopy Light
Browse other designs; these links do not establish compatible accessories or direct replacements.
Delivery
Tracked delivery in 3–7 working days. Delivery costs are shown at checkout before you pay, and you will receive tracking details as soon as your order ships.
Returns
Changed your mind? You can return items within 14 days of delivery. If anything arrives damaged or faulty, email ukcustomerservice@lumimuse.com with a photo and we will arrange a replacement or refund.
Specifications apply to the selected option and the components listed below.
Without Occupancy Sensor · SKU: RDCP02050605KNNSMLCD-6PK
| Input voltage (V) | 120.0–277.0 |
|---|---|
| Supply type | AC |
| Rated power (W) | 60.0 |
| Colour temperature (K) | 5000 |
| Length (mm) | 241.8 |
| Width (mm) | 241.8 |
| Height (mm) | 81.0 |
| IP rating | IP65 |
One 60 W CP05 luminaire within the six-pack. Fixed 5000 K; non-dimmable. Body dimensions exclude optional sensor and installation accessories. These body specifications apply to both listed control options and do not certify the fitted sensor or UK installation. The 177.8 mm figure in the drawing describes the rear mounting area, not overall body size.
With On/off Motion Sensor +$33x6 ( Field Install ) · SKU: RDCP02050605KNMSMLCD-6PK
| Input voltage (V) | 120.0–277.0 |
|---|---|
| Supply type | AC |
| Rated power (W) | 60.0 |
| Colour temperature (K) | 5000 |
| Length (mm) | 241.8 |
| Width (mm) | 241.8 |
| Height (mm) | 81.0 |
| IP rating | IP65 |
One 60 W CP05 luminaire within the six-pack. Fixed 5000 K; non-dimmable. Body dimensions exclude optional sensor and installation accessories. These body specifications apply to both listed control options and do not certify the fitted sensor or UK installation. The 177.8 mm figure in the drawing describes the rear mounting area, not overall body size.
Specifications for this option are unavailable. Please confirm the required details before ordering.
