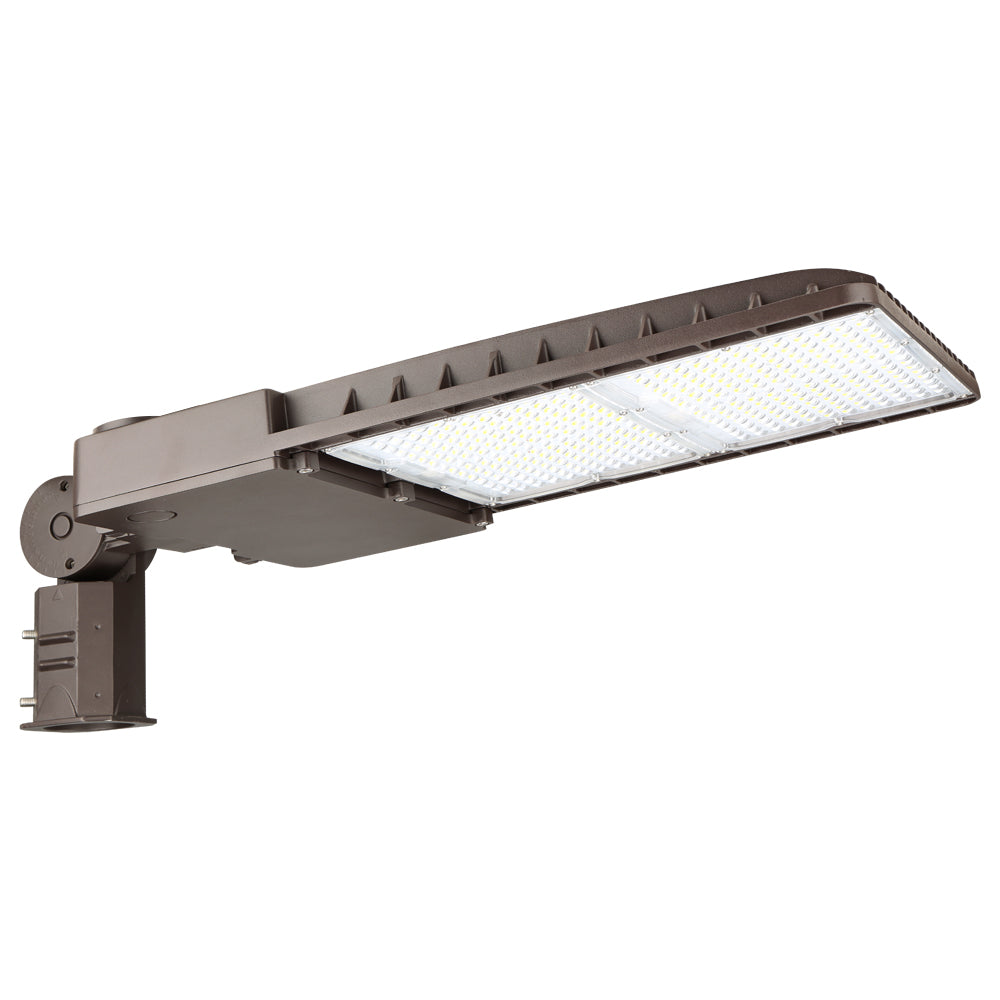

These LED area lights have a documented 250 W rating, fixed 5000 K colour temperature and Type III distribution, with 34,500 lm output for the selected 120–277 V AC configuration. Compare the mounting and control choices for your outdoor area or car-park lighting layout.
| Exact documented configuration | RDAL0204 configuration codes shown in options below |
|---|---|
| Documented electrical input | 250 W |
| Documented AC input | 120–277 V AC |
| Fixed colour temperature | 5000 K |
| Distribution class | Type III |
| Selected lumen output | 34500 lm |
| Documented housing/lens | Die-cast aluminium housing and polycarbonate optical lens |
| Documented finish | Dark bronze |
| Option: Slip-fitter mount / No photocell code;cap unconfirmed | SKU RDAL02042505KDNSFL3D |
| Option: Extrusion arm / No photocell code;cap unconfirmed | SKU RDAL02042505KDNEXL3D |
| Option: Trunnion mount / No photocell code;cap unconfirmed | SKU RDAL02042505KDNTRL3D |
| Option: Wall mount / No photocell code;cap unconfirmed | SKU RDAL02042505KDNWML3D |
| Option: Slip-fitter mount / Photocell option | SKU RDAL02042505KDPSFL3D |
| Option: Extrusion arm / Photocell option | SKU RDAL02042505KDPEXL3D |
| Option: Trunnion mount / Photocell option | SKU RDAL02042505KDPTRL3D |
| Option: Wall mount / Photocell option | SKU RDAL02042505KDPWML3D |
The complete delivered package is unconfirmed. Confirm the selected luminaire,driver,mounting hardware,control equipment and quantities. Optional mounting and control accessories are not established as included.
The complete delivered contents are unconfirmed. Check the light,driver,bracket,photocell,receptacle,cap,adapters,fixings and quantities for the selected choice. A pictured mount does not establish every included part.
No. Confirm the actual driver,frequency where unconfirmed,wiring and UK conformity documents for the site. Have a qualified installer assess the mounting structure and electrical supply.
N identifies a choice without photocell. It does not establish a supplied cap or receptacle. Confirm the exact control hardware and package for the selected option; photocell choices are separate.
Follow the supplied rating labels and instructions. Confirm electrical connections,driver controls,permitted tilt,exposure,fixings and structural loading before installation. Distribution classes and wattages do not establish universal pole fit,HID replacement equivalence or guaranteed field coverage.
Browse LED outdoor area lights
Related listings to browse: LED area lights - 150 W, 4000 K, Type V, 20500 lm and LED area lights - 70 W, 4000 K, Type IV, 9310 lm. These browsing links do not imply compatibility or direct replacement.
Delivery
Tracked delivery in 3–7 working days. Delivery costs are shown at checkout before you pay, and you will receive tracking details as soon as your order ships.
Returns
Changed your mind? You can return items within 14 days of delivery. If anything arrives damaged or faulty, email ukcustomerservice@lumimuse.com with a photo and we will arrange a replacement or refund.
Specifications apply to the selected option and the components listed below.
Slip Fitter / Without Photocell · SKU: RDAL02042505KDNSFL3D
| Input voltage (V) | 120.0–277.0 |
|---|---|
| Supply type | AC |
| Rated power (W) | 250.0 |
| Luminous flux (lm) | 34500 |
| Colour temperature (K) | 5000 |
Shared luminaire-body ratings only for 8 explicitly bound exact original-chart SKUs: RDAL02042505KDNSFL3D, RDAL02042505KDNEXL3D, RDAL02042505KDNTRL3D, RDAL02042505KDNWML3D, RDAL02042505KDPSFL3D, RDAL02042505KDPEXL3D, RDAL02042505KDPTRL3D, RDAL02042505KDPWML3D. Mount and control relationships separately scoped. Original Rev. 1/5/22; supplied revision and UK suitability unverified.
Extrusion Arm / Pole Mount (square/round) / Without Photocell · SKU: RDAL02042505KDNEXL3D
| Input voltage (V) | 120.0–277.0 |
|---|---|
| Supply type | AC |
| Rated power (W) | 250.0 |
| Luminous flux (lm) | 34500 |
| Colour temperature (K) | 5000 |
Shared luminaire-body ratings only for 8 explicitly bound exact original-chart SKUs: RDAL02042505KDNSFL3D, RDAL02042505KDNEXL3D, RDAL02042505KDNTRL3D, RDAL02042505KDNWML3D, RDAL02042505KDPSFL3D, RDAL02042505KDPEXL3D, RDAL02042505KDPTRL3D, RDAL02042505KDPWML3D. Mount and control relationships separately scoped. Original Rev. 1/5/22; supplied revision and UK suitability unverified.
Yoke / Trunnion Mount / Without Photocell · SKU: RDAL02042505KDNTRL3D
| Input voltage (V) | 120.0–277.0 |
|---|---|
| Supply type | AC |
| Rated power (W) | 250.0 |
| Luminous flux (lm) | 34500 |
| Colour temperature (K) | 5000 |
Shared luminaire-body ratings only for 8 explicitly bound exact original-chart SKUs: RDAL02042505KDNSFL3D, RDAL02042505KDNEXL3D, RDAL02042505KDNTRL3D, RDAL02042505KDNWML3D, RDAL02042505KDPSFL3D, RDAL02042505KDPEXL3D, RDAL02042505KDPTRL3D, RDAL02042505KDPWML3D. Mount and control relationships separately scoped. Original Rev. 1/5/22; supplied revision and UK suitability unverified.
Wall Mount / Without Photocell · SKU: RDAL02042505KDNWML3D
| Input voltage (V) | 120.0–277.0 |
|---|---|
| Supply type | AC |
| Rated power (W) | 250.0 |
| Luminous flux (lm) | 34500 |
| Colour temperature (K) | 5000 |
Shared luminaire-body ratings only for 8 explicitly bound exact original-chart SKUs: RDAL02042505KDNSFL3D, RDAL02042505KDNEXL3D, RDAL02042505KDNTRL3D, RDAL02042505KDNWML3D, RDAL02042505KDPSFL3D, RDAL02042505KDPEXL3D, RDAL02042505KDPTRL3D, RDAL02042505KDPWML3D. Mount and control relationships separately scoped. Original Rev. 1/5/22; supplied revision and UK suitability unverified.
Slip Fitter / With Photocell +$15 · SKU: RDAL02042505KDPSFL3D
| Input voltage (V) | 120.0–277.0 |
|---|---|
| Supply type | AC |
| Rated power (W) | 250.0 |
| Luminous flux (lm) | 34500 |
| Colour temperature (K) | 5000 |
Shared luminaire-body ratings only for 8 explicitly bound exact original-chart SKUs: RDAL02042505KDNSFL3D, RDAL02042505KDNEXL3D, RDAL02042505KDNTRL3D, RDAL02042505KDNWML3D, RDAL02042505KDPSFL3D, RDAL02042505KDPEXL3D, RDAL02042505KDPTRL3D, RDAL02042505KDPWML3D. Mount and control relationships separately scoped. Original Rev. 1/5/22; supplied revision and UK suitability unverified.
Extrusion Arm / Pole Mount (square/round) / With Photocell +$15 · SKU: RDAL02042505KDPEXL3D
| Input voltage (V) | 120.0–277.0 |
|---|---|
| Supply type | AC |
| Rated power (W) | 250.0 |
| Luminous flux (lm) | 34500 |
| Colour temperature (K) | 5000 |
Shared luminaire-body ratings only for 8 explicitly bound exact original-chart SKUs: RDAL02042505KDNSFL3D, RDAL02042505KDNEXL3D, RDAL02042505KDNTRL3D, RDAL02042505KDNWML3D, RDAL02042505KDPSFL3D, RDAL02042505KDPEXL3D, RDAL02042505KDPTRL3D, RDAL02042505KDPWML3D. Mount and control relationships separately scoped. Original Rev. 1/5/22; supplied revision and UK suitability unverified.
Yoke / Trunnion Mount / With Photocell +$15 · SKU: RDAL02042505KDPTRL3D
| Input voltage (V) | 120.0–277.0 |
|---|---|
| Supply type | AC |
| Rated power (W) | 250.0 |
| Luminous flux (lm) | 34500 |
| Colour temperature (K) | 5000 |
Shared luminaire-body ratings only for 8 explicitly bound exact original-chart SKUs: RDAL02042505KDNSFL3D, RDAL02042505KDNEXL3D, RDAL02042505KDNTRL3D, RDAL02042505KDNWML3D, RDAL02042505KDPSFL3D, RDAL02042505KDPEXL3D, RDAL02042505KDPTRL3D, RDAL02042505KDPWML3D. Mount and control relationships separately scoped. Original Rev. 1/5/22; supplied revision and UK suitability unverified.
Wall Mount / With Photocell +$15 · SKU: RDAL02042505KDPWML3D
| Input voltage (V) | 120.0–277.0 |
|---|---|
| Supply type | AC |
| Rated power (W) | 250.0 |
| Luminous flux (lm) | 34500 |
| Colour temperature (K) | 5000 |
Shared luminaire-body ratings only for 8 explicitly bound exact original-chart SKUs: RDAL02042505KDNSFL3D, RDAL02042505KDNEXL3D, RDAL02042505KDNTRL3D, RDAL02042505KDNWML3D, RDAL02042505KDPSFL3D, RDAL02042505KDPEXL3D, RDAL02042505KDPTRL3D, RDAL02042505KDPWML3D. Mount and control relationships separately scoped. Original Rev. 1/5/22; supplied revision and UK suitability unverified.
Specifications for this option are unavailable. Please confirm the required details before ordering.
