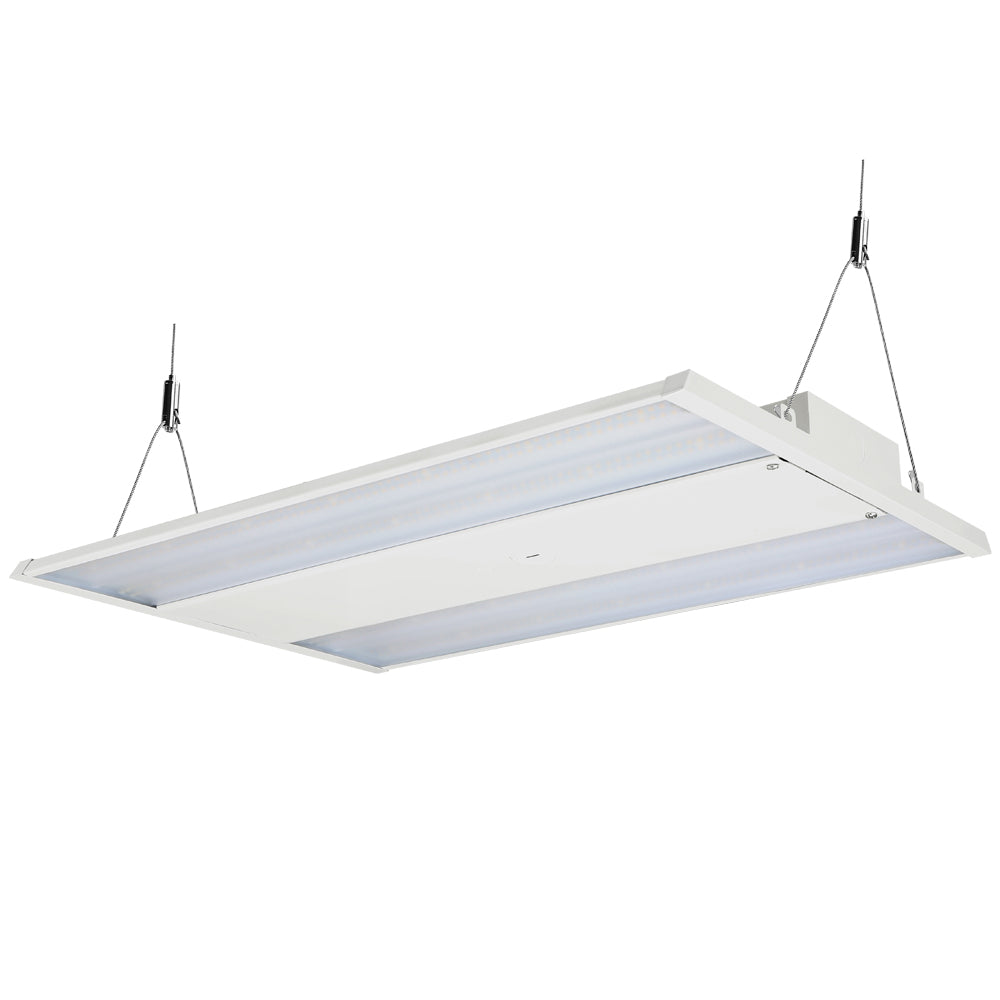

These LED high bay lights use the LH0204 90 W, fixed 5000 K base luminaire, with manufacturer nominal output of 12,600 lm measured for a 277 V AC configuration. Compare this fitting for a planned warehouse, garage or workshop installation, then confirm the exact supplied revision and electrical requirements.
Values apply only to the named normal-lighting base component. Sensor, backup and optical accessories are not assigned unverified assembled ratings.
| Shop option reference | RDLH02040905KDN12LC — Without Motion Sensor / Without Emergency Battery Back-Up |
|---|---|
| Scope | These specifications describe the luminaire during normal mains operation. They do not describe the motion sensor or emergency battery. Light output is the manufacturer’s nominal figure at 277 V AC. Dimensions are for the light body and exclude optional accessories. Confirm the fitted driver, dimming interface, accessories and suitability for a UK 50 Hz supply before installation. |
| Base input minimum (V) | 120 V |
| Base input maximum (V) | 277 V |
| Supply type | AC |
| Normal-lighting base power (W) | 90 W |
| Base colour temperature minimum (K) | 5000 K |
| Nominal base light output (lm) | 12600 lm |
| Base body length (cm) | 60 cm |
| Base body width (cm) | 25 cm |
| Base body height (cm) | 4.44 cm |
| Documented base model | RDLH02040905KDN12LC |
| Shop option reference | RDLH02040905KDN12LC-EB — Without Motion Sensor / With 8W Emergency Battery +$90 |
| Scope | These specifications describe the luminaire during normal mains operation. They do not describe the motion sensor or emergency battery. Light output is the manufacturer’s nominal figure at 277 V AC. Dimensions are for the light body and exclude optional accessories. Confirm the fitted driver, dimming interface, accessories and suitability for a UK 50 Hz supply before installation. |
| Base input minimum (V) | 120 V |
| Base input maximum (V) | 277 V |
| Supply type | AC |
| Normal-lighting base power (W) | 90 W |
| Base colour temperature minimum (K) | 5000 K |
| Nominal base light output (lm) | 12600 lm |
| Base body length (cm) | 60 cm |
| Base body width (cm) | 25 cm |
| Base body height (cm) | 4.44 cm |
| Documented base model | RDLH02040905KDN12LC |
| Shop option reference | RDLH02040905KDM12LC — With PIR Motion Sensor +$35 / Without Emergency Battery Back-Up |
| Scope | These specifications describe the luminaire during normal mains operation. They do not describe the motion sensor or emergency battery. Light output is the manufacturer’s nominal figure at 277 V AC. Dimensions are for the light body and exclude optional accessories. Confirm the fitted driver, dimming interface, accessories and suitability for a UK 50 Hz supply before installation. |
| Base input minimum (V) | 120 V |
| Base input maximum (V) | 277 V |
| Supply type | AC |
| Normal-lighting base power (W) | 90 W |
| Base colour temperature minimum (K) | 5000 K |
| Nominal base light output (lm) | 12600 lm |
| Base body length (cm) | 60 cm |
| Base body width (cm) | 25 cm |
| Base body height (cm) | 4.44 cm |
| Documented base model | RDLH02040905KDM12LC |
| Shop option reference | RDLH02040905KDM12LC-EB — With PIR Motion Sensor +$35 / With 8W Emergency Battery +$90 |
| Scope | These specifications describe the luminaire during normal mains operation. They do not describe the motion sensor or emergency battery. Light output is the manufacturer’s nominal figure at 277 V AC. Dimensions are for the light body and exclude optional accessories. Confirm the fitted driver, dimming interface, accessories and suitability for a UK 50 Hz supply before installation. |
| Base input minimum (V) | 120 V |
| Base input maximum (V) | 277 V |
| Supply type | AC |
| Normal-lighting base power (W) | 90 W |
| Base colour temperature minimum (K) | 5000 K |
| Nominal base light output (lm) | 12600 lm |
| Base body length (cm) | 60 cm |
| Base body width (cm) | 25 cm |
| Base body height (cm) | 4.44 cm |
| Documented base model | RDLH02040905KDM12LC |
The complete delivered contents and quantity are unconfirmed. Request an actual packing list for the selected SKU, including lamp body, driver, leads, fixings, sensor, remote and any optional parts.
A published voltage rating or pictured plug does not establish UK suitability. Confirm the supplied electrical label, operating frequency, wiring and conformity for the intended installation.
Base normal-lighting ratings do not establish the complete accessory assembly. Exact sensor, emergency battery, reflector, bracket, control requirements and any changed optics require separate confirmation.
The complete delivered contents and quantity are unconfirmed. Request an actual packing list for the selected SKU, including lamp body, driver, leads, fixings, sensor, remote and any optional parts.
Normal-lighting base values and body dimensions exclude the sensor, emergency driver and battery assembly. The exact fitted dimming interface remains unconfirmed. Confirm exact supplied instructions, connection and local installation requirements before ordering.
Other designs to browse; these links do not establish compatible parts or direct replacements.
Delivery
Tracked delivery in 3–7 working days. Delivery costs are shown at checkout before you pay, and you will receive tracking details as soon as your order ships.
Returns
Changed your mind? You can return items within 14 days of delivery. If anything arrives damaged or faulty, email ukcustomerservice@lumimuse.com with a photo and we will arrange a replacement or refund.
Specifications apply to the selected option and the components listed below.
Without Motion Sensor / Without Emergency Battery Back-Up · SKU: RDLH02040905KDN12LC
| Input voltage (V) | 120.0–277.0 |
|---|---|
| Supply type | AC |
| Rated power (W) | 90.0 |
| Luminous flux (lm) | 12600 |
| Colour temperature (K) | 5000 |
| Length (mm) | 600.0 |
| Width (mm) | 250.0 |
| Height (mm) | 44.4 |
These specifications describe the luminaire during normal mains operation. They do not describe the motion sensor or emergency battery. Light output is the manufacturer’s nominal figure at 277 V AC. Dimensions are for the light body and exclude optional accessories. Confirm the fitted driver, dimming interface, accessories and suitability for a UK 50 Hz supply before installation.
Without Motion Sensor / With 8W Emergency Battery +$90 · SKU: RDLH02040905KDN12LC-EB
| Input voltage (V) | 120.0–277.0 |
|---|---|
| Supply type | AC |
| Rated power (W) | 90.0 |
| Luminous flux (lm) | 12600 |
| Colour temperature (K) | 5000 |
| Length (mm) | 600.0 |
| Width (mm) | 250.0 |
| Height (mm) | 44.4 |
These specifications describe the luminaire during normal mains operation. They do not describe the motion sensor or emergency battery. Light output is the manufacturer’s nominal figure at 277 V AC. Dimensions are for the light body and exclude optional accessories. Confirm the fitted driver, dimming interface, accessories and suitability for a UK 50 Hz supply before installation.
With PIR Motion Sensor +$35 / Without Emergency Battery Back-Up · SKU: RDLH02040905KDM12LC
| Input voltage (V) | 120.0–277.0 |
|---|---|
| Supply type | AC |
| Rated power (W) | 90.0 |
| Luminous flux (lm) | 12600 |
| Colour temperature (K) | 5000 |
| Length (mm) | 600.0 |
| Width (mm) | 250.0 |
| Height (mm) | 44.4 |
These specifications describe the luminaire during normal mains operation. They do not describe the motion sensor or emergency battery. Light output is the manufacturer’s nominal figure at 277 V AC. Dimensions are for the light body and exclude optional accessories. Confirm the fitted driver, dimming interface, accessories and suitability for a UK 50 Hz supply before installation.
With PIR Motion Sensor +$35 / With 8W Emergency Battery +$90 · SKU: RDLH02040905KDM12LC-EB
| Input voltage (V) | 120.0–277.0 |
|---|---|
| Supply type | AC |
| Rated power (W) | 90.0 |
| Luminous flux (lm) | 12600 |
| Colour temperature (K) | 5000 |
| Length (mm) | 600.0 |
| Width (mm) | 250.0 |
| Height (mm) | 44.4 |
These specifications describe the luminaire during normal mains operation. They do not describe the motion sensor or emergency battery. Light output is the manufacturer’s nominal figure at 277 V AC. Dimensions are for the light body and exclude optional accessories. Confirm the fitted driver, dimming interface, accessories and suitability for a UK 50 Hz supply before installation.
Specifications for this option are unavailable. Please confirm the required details before ordering.
